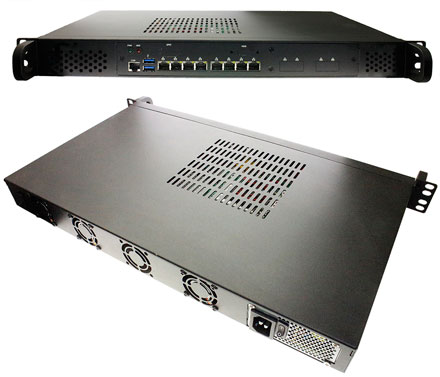

Jetway JBC153F592-Q170-G4 (Intel Q170 Express)

Intel® LGA 1151 Socket Core i7/i5/i3/Pentium Processor
Intel® Q170 Chipset
2 * SO-DIMM DDR3L 1333/1066MHz (Max. up to 16GB )
2 * 2.5” SATA Device
Support SIM Card Slot
Suitable for Networking Server System / Surveillance

789.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Product Dimension	430 (W) * 251 (D) * 43 (H) mm
Product Model	JBC153F592-Q170-B JBC153F592-Q170-G4
MB Model & Size	JNF592-Q170 / MINI-ITX
BIOS	AMI 128MB SMT Flash ROM
CPU	Intel® LGA 1151 Socket Core i7/i5/i3/Pentium Processor
Memory	SO-DIMM DDR3L 1333/1066MHz * 2 (Max 16GB)
Storage	2.5” SATA HDD * 2 (Support RAID-1)
Expansion	Full size Mini-PCIE * 1 SIM Card Slot * 1 Support TPM (optional)
FAN	DC-12V / 4020 FAN * 3
Front I/O Port	Power LED * 1 , HDD LED * 1 COM * 1 (RJ-45 type) HDMI * 1, GPIO * 1 (optional) USB 3.0 * 2 Giga LAN * 8 Giga LAN * 4 (Expansion 4 ports LAN PCI-E Card /JBC153F592-Q170-G4)
Rear I/O Port	AC input * 1 PW SW * 1
Power Source	1U 200W FLEX POWER AC 90~240V input
Accessory	AC Cable * 1 , Screw Package * 1 User Manual * 1 , CD * 1
Packing	Net Weight：4.2KG Gross Weight：5KG Color Box Dimension：560 (W) x 400 (D) x 380 (H) mm
Temperature	Operating within 0~60 centigrade Storage within -10-70 centigrade
Certification	EMC : CE , FCC Safety : RoHS , ErP
Applications	Networking Surveillance

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (Rackmount)	Download (PDF)
Jetway Catalog (Barebones)	Download (PDF)
