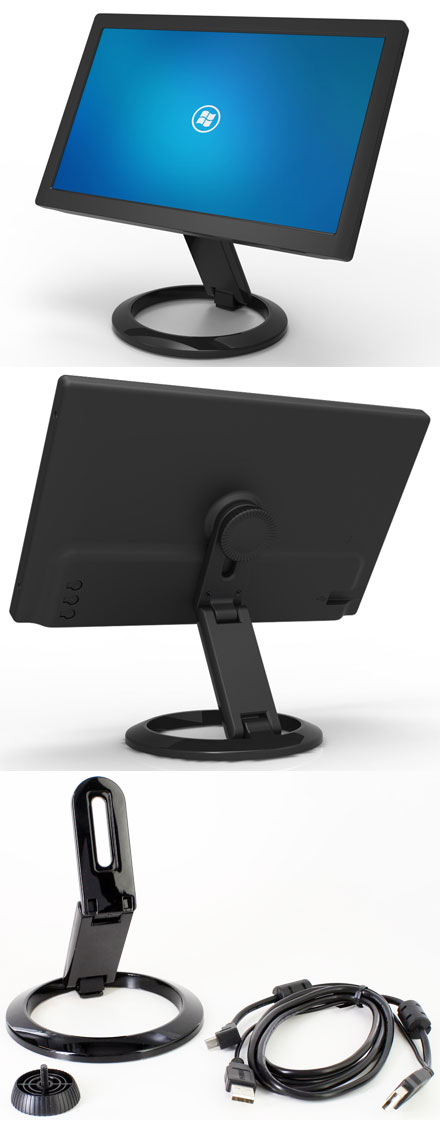

Nanovision UM-1010S (10.1" USB Multi-Touchscreen Display)

Nanovision UM-1010S (10.1" USB Multi-Touchscreen Display)
3D 360° View
  • Displaylink !
  • 1024x600 !
  • Capacitive Touchscreen !

This TFT monitor is connected to a Windows PC USB connector. The display is working as an additional display which can be added to the main display area on the left, right, upper or lower. Alternatively it can mirror the primary screen. The display can be swiveled in steps of 90°.

In addition, the UM-1010S model comes with capacitive multi touchscreen.

Specifications :

System requirements:
- CPU : 1.2Ghz+
- RAM : 512MB RAM+
- USB : min. 1x USB 2.0
- HDD : 30MB
- OS : Windows 10/8.1/8 /7/Vista with Service Pack 1 or 2 (32-bit or 64-bit), LINUX, Ubuntu, Raspberry Pi, Mac OS X (Intel CPU Based, Non-to
[more]

Share

259.00 EUR
incl. 19% VAT, plus shipping
In Stock (11 pcs)

Add to cart

This TFT monitor is connected to a Windows PC USB connector. The display is working as an additional display which can be added to the main display area on the left, right, upper or lower. Alternatively it can mirror the primary screen. The display can be swiveled in steps of 90°.

In addition, the UM-1010S model comes with capacitive multi touchscreen.

Specifications :

System requirements:
- CPU : 1.2Ghz+
- RAM : 512MB RAM+
- USB : min. 1x USB 2.0
- HDD : 30MB
- OS : Windows 10/8.1/8 /7/Vista with Service Pack 1 or 2 (32-bit or 64-bit), LINUX, Ubuntu, Raspberry Pi, Mac OS X (Intel CPU Based, Non-touch Display only) Mountain Lion 10.8/Lion 10.7/Snow Leopard 10.6/Leopard 10.5/Tiger 10.4
Notes :
- 3D applicationes (eg. 3D games) can not be displayed.

- How many displays can be connected to a PC at the same time ?
1-2 displays : 1.2Ghz CPU, 512MB RAM
3-5 displays : 1.8Ghz CPU, 1GB RAM
6++ displays : 1.6Ghz Dual-Core CPU, 1GB RAM

- MAC OS Support ?
Display, webcam, etc. : Yes
Touchscreen (MAC OS) : Right now only available with non-free 3-rd party driver.

Touchscreen-Driver for Windows is free and included with the shipment !

Model UM-1010S (10.1")
Display Size 225mm (H) x 127mm (V)
Response time 16ms
Number of Colors 16.7M
Contrast 500:1
Brightness 200 cd/m²
Signal input USB mini-B type (5 pin)
Input Power USB (DC 5V)
Screen resolution 1024x600)
Power consumption 3.3W~4.9W
Dimensions 248x153x19 (WxHxD)mm
Weight ~0,6 kg
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
