Mitac PH11SI Thin-ITX (Intel H110, LGA1151 Skylake) [Mini-PCIe, 19V]

PRODUCT IS CURRENTLY NOT AVAILABLE !

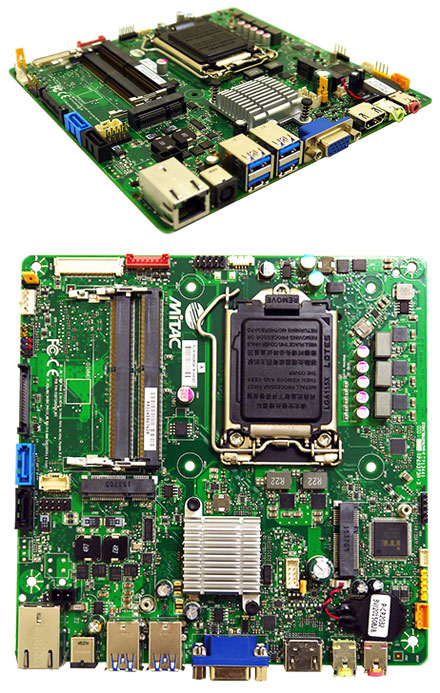

Mitac PH11SI Thin-ITX (Intel H110, LGA1151 Skylake) [Mini-PCIe, 19V]

  • Support Intel 6th generation Intel Core Processor
  • LGA1151 SKL-S CPU compatible (up to 65W)
  • Dual channel DDR4 with two connectors (up to 16GB)
  • High speed Gigabit Ethernet connection
  • Two PCI Express Mini Card connector for expansion
  • Features 2 SATA3 (6Gbps)
  • Four Hi-Speed external USB3.0 ports support
  • HD-out & VGA display connectivity
  • Embedded LVDS/ connectivity


Share

198.95 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Add to cart
Compare
CPU LGA1151
Graphics Intel HD Graphics
Formfactor ITX (17x17cm)
RAM 2x SO-DDR-IV
Audio Realtek ALC662
Base Intel ITX
USB 5x USB2.0, 4x USB3.0
Firewire --
IDE/SATA 2x SATA
LAN 1x 10/100/1000
Parallel --
Serial --
yes TV-Out
no PCI
yes Mini-PCI
no IDE
no DVI
yes 800x480 Resolution
no Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
yes CPU changeable
no Compact Flash
Item Spec
Form Factor Thin Mini-iTX (170mm x 170mm), 6 layers
Processor CPU Type : Intel Skylake-S Desktop platform
CPU Core : Dual Core / Quad Core
Socket : Socket LGA1151
TDP : Support up to 65W CPU types
Chipset Chipset Series : Intel® H110 Chipset
Graphics Integrated GFX by CPU
Graphic Core : Gen9
Graphic Memory : Shared Memory
3D : DX12, OpenGL 4.3/4.4
Computing : OpenCL 2.0
Memory Memory Socket: 260-pin So-DIMM socket 2
Memory Type: DDR4 @ 1.2V, 2133MHz (Unbuffered
Non-ECC)
Memory Channel: Dual Channel
Memory Capacity : Support total up to 32GB (16GB each by 2 SO-DIMM)
ECC Support : No
SIO Controller IT8519E
LAN
Controller
Realtek RTL8111G, 10/100/1000 support
Audio
Controller
Codec: HD audio codec, Realtek ALC662
AMP for internal speaker
Display
Controller
Parade DP701
Expansion slot PCI-E Mini Card (Half) x 1, Signal: PCIe, USB2.0
for WiFi/BT module
PCI-E Mini Card (Full) x 1, Signal: PCIe, SATA3.0
for mSATA or TV card
External I/O HD-out 1
VGA out 1
USB3.0 4
RJ-45 (with integrated status LEDs) 1
Line-out 1
Mic-in 1
DC-in Jack (19V DC; 5mm/ ID, 7.5mm/ OD) 1
Internal I/O LVDS connector 1
Converter BD header 1
Light sensor header 1
USB 2.0 header 5
SATA Connector 2
SATA Power 1
CPU Fan header 1
Speaker header 1
Side SW/LED header 1
DMIC header 1
19V 2 pin power header (Option#1)
12V 4 pin power header (Option#2)
Power Option#1: 19V DC-in, 19V 2pin power header
Option#2: 12V DC-in, 12V 4pin power header
BIOS AMI BIOS
Compliance CE
FCC
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Specifications Download (PDF)
BIOS Download
