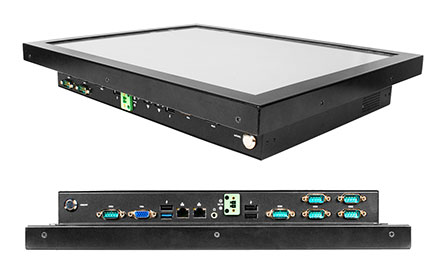

Jetway HPC-170BR-2930-4G Panel-PC (17" 1280x1024 5W Touchscreen, Intel Celeron N2930, 4GB RAM)

Jetway HPC-170BR-2930-4G Panel-PC (17" 1280x1024 5W Touchscreen, Intel Celeron N2930, 4GB RAM)

  • INTEL® BayTrail--M N2930 SOC Chip
  • Onboard INTEL® BayTrail-M N2930 1.83GHz Quad Cores CPU
  • Onboard SAMSUNG 4G/1333MHz DDR3L Memory
  • Support DirectX 11 3D Graphics Acceleration
  • Support 1*Serial ATAII(3Gb/s) Devices
  • Support Dual INTEL® Gigabit LAN
  • Support CRT Output
  • Equipped with 802.11 b/g/n WIFI card & External Antenna
  • Support 3* COM ports（COM2/COM3 Support RS422/485）
  • Support 2.5” SATA HDD
  • Support 1*M-SATA Socket
  • Support 1*Mini PCI-E Socket
  • Support 3* USB2.0 Ports
  • Support 1* USB3.0 Port
  • Support 3G SIM Card
  • Support slick design, IP [more]

    Share

1139.00 EUR
incl. 19% VAT, plus shipping
Available in 4 weeks
Add to cart

  • INTEL® BayTrail--M N2930 SOC Chip
  • Onboard INTEL® BayTrail-M N2930 1.83GHz Quad Cores CPU
  • Onboard SAMSUNG 4G/1333MHz DDR3L Memory
  • Support DirectX 11 3D Graphics Acceleration
  • Support 1*Serial ATAII(3Gb/s) Devices
  • Support Dual INTEL® Gigabit LAN
  • Support CRT Output
  • Equipped with 802.11 b/g/n WIFI card & External Antenna
  • Support 3* COM ports（COM2/COM3 Support RS422/485）
  • Support 2.5” SATA HDD
  • Support 1*M-SATA Socket
  • Support 1*Mini PCI-E Socket
  • Support 3* USB2.0 Ports
  • Support 1* USB3.0 Port
  • Support 3G SIM Card
  • Support slick design, IP65 Rating
  • VESA mount(100mm X100mm &75mm x 75mm)

Panel Panel Spec AUO G170ETN01.0
Viewable Size Image 17.0 inch With LED Backlight
Active Area 337.920(H) x 270.336(V)
Resolution 1280 x 1024 @60Hz
Display Color 16.7M
Pixel Pitch 0.264 x 0.264 mm
Aspect Ratio 4:3
Contrast Ratio 1000:1
Max Brightness 350 cd/m²
Viewing Angle(H/V) H170/V160
Response Time 3.5ms
Temperature Range 0 ～ +50℃(Operating)
Touch Touch panel style 5 wires analog resistive
Active Range 337.00 x 269.50mm ±0.2mm
Temperature Range -10 ~ +60℃(Operating)
Transparency 80 ±3%
Surface Hardness ≧ 3H (ASTM D3363, pressure 750g/45°)
Operating Force ≦ 80g
Knock test 10,000,000 times keystrokes
Data sheet Download (PDF)
Data sheet Print view
