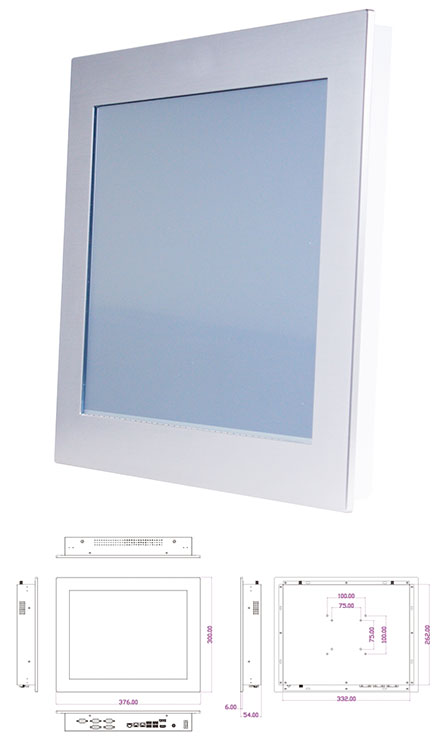

Jetway HPC-150SR-3160-BC Panel-PC (15" 1024x768 5W Touchscreen, Intel Celeron N3160, 4GB RAM)

Jetway HPC-150SR-3160-BC Panel-PC (15" 1024x768 5W Touchscreen, Intel Celeron N3160, 4GB RAM)

  • INTEL® Braswell-M N3160 SOC
  • Onboard INTEL® Braswell-M N3160 2.24GHz Quad Cores CPU
  • Onboard 4G/1600MHz DDR3L Memory
  • 1* 64G M.2 SSD
  • Support DirectX 12 3D Graphics Acceleration
  • Support 1*Serial ATAIII (6Gb/s) Device
  • Support Dual INTEL® Gigabit LAN
  • Support HDMI+DP Output
  • Support 6* COM ports(COM2 Support RS422/485)
  • Support 1*M.2 Socket for 60G SSD
  • Support 1*Mini PCI-E Socket
  • Support 4* USB3.0 Ports
  • Support wide voltage input :9~36V
  • 60mm thin, slice design
  • VESA mount(100mm X100mm &75mm x 75mm)


Share

1018.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart

Panel

Viewable Size Image 150 inch With LED Backlight
Active Area 304.128(H) x 228.096(V)
Resolution 1024 x 768 @60Hz
Display Color 262K
Pixel Pitch 0.297 x 0.297 mm
Aspect Ratio 4:3
Contrast Ratio 700:1
Max Brightness 350 cd/m²
Viewing Angle(H/V) H170/V160
Response Time 5.7ms
Temperature Range 0°C ~ +65°C(Operating)

Touch

Touch panel style 5 wires analog resistive
Active Range 304.10 x 228.10mm ±0.2mm
Temperature Range -10 ~ +60°C(Operating)
Transparency 80 ±3%
Surface Hardness ≧ 3H (ASTM D3363, pressure 750g/45°)
Operating Force ≦ 80g
Knock test 10,000,000 times keystrokes

Case

Panel Material Aluminum
Case Material Iron
Color Silver
Coating Requirement Spray Paint
Speaker 2-CH(3W)
Bracket 6 (Top:2pcs、Side:4pcs, Optional)
Installation Type Open Frame / Wall Hanging(Optional)
Cooling Mode Fanless Fully sealed design

System Specification

Form Factor 3.5”
Processor INTEL® Braswell-M N3160 2.24GHz/QC
System Chipset INTEL® Braswell -M N3160 (SOC)
System Memory 4G/1600MHz DDR3L SAMSUNG DRAM
BIOS 64MB SPI Flash ROM
Ethernet 1* Gigabit LAN
Audio Realtek®  ALC662 HD Audio
Storage 1* Serial ATA3 6Gb/s connector
1* M.2 64G SSD
WIFI Module N/A(Option)
Optical Device N/A
Expansion PCI-E mini card for WLAN
Display Output HDMI+DP
I.O Port 4*USB3.0、6*RS232(1*RS232/422/485)、2*RJ45CK
Power Adapter DC-IN (9~36V)
OS Support Windows 7/8.1/10(Windows 7 64 bit)
Temperature Operating:-10 ~ +60°C
Humidity 20%~90% (non condensing)
Shock Operating:15G,11ms duration
Vibration  Operating:5~500Hz/1 Grms
Net Weight (kg)
Dimension 376.0mm*300.0mm*60.0mm
Certification FCC CE ROHS
Other Support Non wire I.O interface output

Other Information

Application Commercial、Banking、Digital Signage
POS/KIOSK、Industrial Automation
Special Features Metal design, compact、slice
Other Optional wall hanging telescopic bracket, etc., can also be used as the embedded security
Data sheet Download (PDF)
Data sheet Print view
