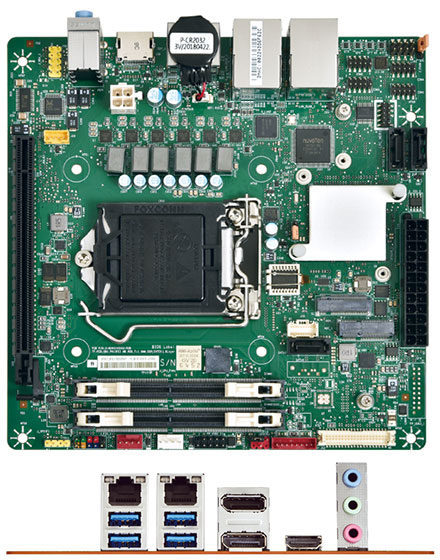

Mitac PH13FEI Mini-ITX (Intel Q370, LGA1151 Coffee Lake)

Support Intel Coffee lake processors
Dual channel DDR4 260-pin SO-DIMM
Intel^® vPro business-grade technology support (with Q370 chipset)
Dual high speed Gigabit Ethernet connection
Two M.2 (NGFF) connector for expansion
Features 4 SATA3 (6Gbps)
Triple display connectivity by dual DP & HDMI
Embedded LVDS connectivity
Onboard 2/4 serial ports

209.95 EUR
incl. 19% VAT, plus shipping
Available in 6 weeks

Item	Spec
Form Factor	Mini-iTX, 6.7” x 6.7” (170mm x 170mm)
Processor	CPU Type : Intel Coffee lake Processor CPU Core : Dual Core / Quad Core / Hexa core Socket : Socket LGA1151 TDP : Support up to 65W CPU types
Chipset	Chipset Series : Intel® Q370 Chipset
Memory	Memory Type : DDR4 @ 1.2V, 2666 MHz (Unbuffered Non-ECC) Memory Channel: Dual Channel Memory Capacity : Support total up to 32GB ECC Support : No
Memory	Memory Socket: 260-pin So-DIMM socket	2
Audio	Codec: HD audio codec, Realtek ALC662
Expansion Capability	PCIe 3.0 x 16 slot	1
	M.2 (NGFF) M key 2242/2280 (PCIe / SATA) for storage	1
	M.2 (NGFF) E key 2230 (PCIe / USB) for wireless	1
External I/O	HDMI out	1
	DP out	4
	USB 3.1 gen 2 (10 Gb/s)	4
	RJ-45	2
	Line-Out	1
	Mic-In	1
	Line-In	1
Internal I/O	40PIN Header LVDS Connector	1
	USB3.0 ports	2
	Front audio Header (Mic / HP)	1
	DMIC Header	1
	Internal Speaker (support 2W)	1
	USB 2.0 ports	2
	Serial port header (one configurable for RS232/422/485)	4
	MiAPI Programmable header (support GPIO x 10, SMBUS x 1, UART x 1, Watchdog x1 ) with API library supported for Windows OS	1
	SATA 3.0 6 Gb/s (PCH Q series Support RAID 0, 1)	4
	Front Panel header	1
	LVDS inverter power header	1
	Clear CMOS header	1
	Panel power Header (default 5V, option to 12V, 3.3V)	1
	CPU fan header	1
	SYS fan header	1
Security	Nuvoton NCT6116D Intel® vPro™ Technology support TPM security by Nuvoton NPCT750AAAYX (optional)
LAN Support	Intel® I219 Gigabit (10/100/1000 Mb/s) LAN Intel® I211 Gigabit (10/100/1000 Mb/s) LAN
BIOS	Support for Advanced Configuration and Power Interface (ACPI) setting
Instantly Available PC Technology	Suspend to RAM support Wake on PCI Express, LAN, front panel, serial, and USB ports
Hardware Monitor Subsystem	Hardware monitoring through the Nuvoton6104D legacy I/O controller, including: Remote thermal sensor Speed control for 4-pin system fan header and 4-pin CPU fan header
Power Requirement	ATX PWR Con (24+4 pin)
Environment	Operating Temperature: 0 °C to +60 °C Storage Temperature: -20°C to +70°C
OS Support	Windows 10 64bit, Linux (support by request)
Safety	CE FCC

Data sheet	Download (PDF)
Data sheet	Print view
Mitac Catalogue	Download (PDF)
Mitac Edge AI Guide	Download (PDF)
Specifications	Download (PDF)
MiAPI Interface	Download
