Jetway HBJC313U691-345B (Intel Apollo Lake)

Intel Apollo Lake processor (10W)
1 * SO-DIMM DDR3L up to 8GB
4 * USB3.0, 1 * COM, 1 * VGA, 2 * HDMI, 2 * RJ45, 1 * Audio (Mic + Line-out)
M/B Form Factor : NUC (101x101mm)
DC-12V_40W Adapter

359.00 EUR
incl. 19% VAT, plus shipping
In Stock (1 pcs)

MB Model	– JNU691B-3350 / NUC (101 X 101 mm) – JNU691B-3455 / NUC (101 X 101 mm)
Part No.	– HBJC313U691-335B (non-WIFI) / HBJC313U691W-335B (WIFI) – HBJC313U691-345B (non-WIFI) / HBJC313U691W-345B (WIFI)
BIOS	– AMI 128MB SMT Flash ROM
CPU/Chipset	– INTEL® Apollo Lake N3350 SoC Processor (TDP : 6W) – INTEL® Apollo Lake J3455 SoC Processor (TDP : 10W)
Memory	– 1 * DDR3L-1866MHz SO-DIMM up to 8GB
Storage	– 1 * full-size mSATA/Mini-PCI Express shared slot
Network	– 2 * GbE – 1 * half-size Mini-PCIe slot (for Mini-PCIe WiFi module) – 1 * SIM Card

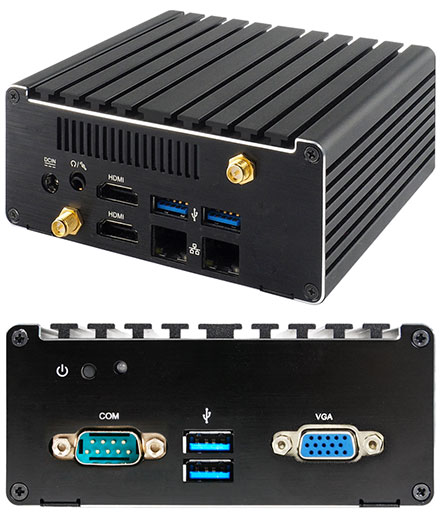

Rear Panel I/O	– 2 * USB 3.0 – 2 * HDMI 1.4 (Max. 3840×2160@30Hz resolution) – 1 * VGA (Max. 1920×1200@60Hz resolution) – 2 * RJ45 – 1 * Audio (Line-out+MIC Combo) – 2 * Antenna holes – 12V DC-in Jack
Front Panel I/O	– 1 * Power button – 1 * Power LED – 2 * USB 3.0 – 1 * COM (RS232/422/485)
Power Source	– AC-DC Adapter / DC12V-3.3A-40W – AC 90~240V input
Compliance	– CE, FCC, RoHS, ErP Ready
Temperature	– Operating Temperature: 0 ~ 50° C – Storage Temperature: -10 ~ 70° C
Dimensions	– 116 (W) x 110 (D) x 49 (H) mm
Packing	– Net Weight: 0.9KG – Gross Weight: 1.6KG – Color Box dimension: 158 (W) * 164 (D) * 123.6 (H) mm
OS Support	– Windows 10, Linux
Warranty	– 2 Years limited warranty

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (Rackmount)	Download (PDF)
Jetway Catalog (Barebones)	Download (PDF)
