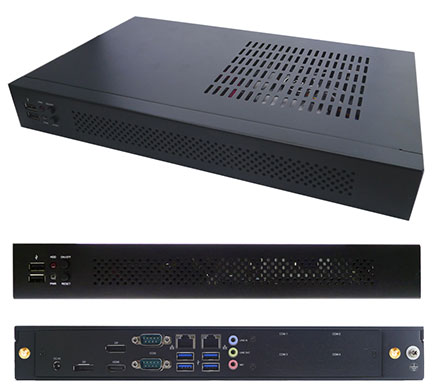

Jetway JBC142F697Z-Q170B (Intel Kabylake)

Jetway JBC142F697Z-Q170B (Intel Kabylake)
  • JBC142F697W-Q170B

  • Intel® Skylake /Kabylake CPU, DDR4 up to 32GB, support max 4K display resolution
  • Intel® Skylake /Kabylake Processor (Max. TDP 65W)
  • Support DDR4-2133, 2 * SO-DIMM slot, up to 32GB memory
  • 2 * USB2.0 , 4 * USB3.0 , 2 * COM , 1 * HDMI , 2 * DP , 2 * RJ45 , 1 * MIC , 1 * Line out , 1 * Line in , 4 * COM (Option)
  • M/B Form Factor : Mini ITX (170x170mm)
  • DC-19V_120W Adapter


Share

619.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
MB Model –JNF697-Q170 / Mini ITX
Part No –HBJC142F697-Q170B (non-WIFI)
–HBJC142F697W-Q170B (WIFI)
BIOS –AMI 16MB SMT Flash ROM
CPU/Chipset –Intel® LGA1151 Skylake /Kabylake Processor (Max. TDP 65W)
–Intel® Q170 Express Chipset
Memory –2 * SO-DIMM slots DDR4-2133 up to 32GB
Storage –2 * 2.5” SATA3 6Gb/s internal drive bay
Network –2 * Intel® GbE (i211AT * 1 & i219LM * 1)
–1 * Full-size Mini-PCIE slot ( 802.11 b/g/n + BT 4.0 installed in WIFI model / Optional)
Rear Panel I/O –4 * USB 3.0 ports
–1 * HDMI, 2 * DP
–2 * RJ45
–1 * Line-in, 1 * Line-out, 1 * Mic-in (Realtek ALC662VD)
–2 * COM (RS232/422/485), 4 * COM (RS232/Optional)
–2 * Antenna holes (WiFi model only)
–19V DC-In jack
Front Panel I/O –1 * Power button, 1 * Reset button
–1 * Power LED, 1 * HDD LED
–2 * USB2.0 ports
Internal I/O –1 * SIM Card
Option –TPM 1.2 / TPM 2.0
Power Source –FSP DC Adapter / DC19V-6.3A-120W / LV6
–AC 90~240V input
Compliance –CE, FCC, LVD, RoHS
Safety –Vibration test: N.C
–Shock test: N.C
Temperature –Operating Temperature: 0~50°C
–Storage Temperature: -10-70°C
Dimensions –330 (W) x 192 (D) x 44 (H) mm
Packing –Net Weight: 2.0KG
–Gross Weight: 3.2KG
–Color Box dimension: 406 (W) * 359 (D) * 148 (H) mm
OS Support –32/64 bit versions of Windows 7, Windows 8.1, Windows 10, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
