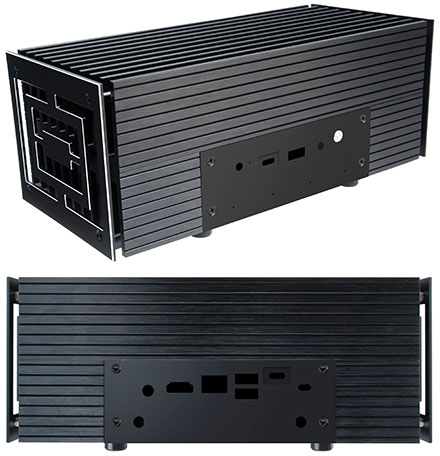

Akasa Turing FX enclosure (for Intel NUC NUC10i7FNH / NUC10i7FNK / NUC10i5FNH / NUC10i5FNK / NUC10i3FNH / NUC10i3FNK) [FANLESS]

Akasa Turing FX enclosure (for Intel NUC NUC10i7FNH / NUC10i7FNK / NUC10i5FNH / NUC10i5FNK / NUC10i3FNH / NUC10i3FNK) <b>[FANLESS]</b>
  • For Intel 10th Gen. NUC !
  • FANLESS !
  • Kensington lock !
  • Front USB !

This enclosure enables a fully fanless working PC with Intel NUC10i7FNH/ NUC10i7FNK / NUC10i5FNH / NUC10i5FNK / NUC10i3FNH / NUC10i3FNK NUC mainboard. Perfect for HTPC, Digital Signage or Server applications.

For a full PC you need in addition :
- Intel NUC10i7FNH/ NUC10i7FNK / NUC10i5FNH / NUC10i5FNK / NUC10i3FNH / NUC10i3FNK NUC mainboard
- M.2 SSD o. 2.5" HDD/SSD
- RAM

Features :
• Aluminium fanless cooling design
• Stylish cover panels with diamond effect
• Internal M.2 SSD heatsink
• An audiophile’s delight - makes a nice music server
• Positioned vertically o
[more]

Share

124.95 EUR
incl. 19% VAT, plus shipping
In Stock (more than 100 pcs)

5 von 5 Sternen
4 ratings

Add to cart

This enclosure enables a fully fanless working PC with Intel NUC10i7FNH/ NUC10i7FNK / NUC10i5FNH / NUC10i5FNK / NUC10i3FNH / NUC10i3FNK NUC mainboard. Perfect for HTPC, Digital Signage or Server applications.

For a full PC you need in addition :
- Intel NUC10i7FNH/ NUC10i7FNK / NUC10i5FNH / NUC10i5FNK / NUC10i3FNH / NUC10i3FNK NUC mainboard
- M.2 SSD o. 2.5" HDD/SSD
- RAM

Features :
• Aluminium fanless cooling design
• Stylish cover panels with diamond effect
• Internal M.2 SSD heatsink
• An audiophile’s delight - makes a nice music server
• Positioned vertically or horizontally
• Compatible with the following Intel® NUC Board
NUC10i7FNH/ NUC10i7FNK / NUC10i5FNH / NUC10i5FNK / NUC10i3FNH / NUC10i3FNK

Material Aluminium
Motherboards types UCFF 4" X 4"
Motherboard support Intel NUC Board (kit): NUC10i7FNH / NUC10i7FNK / NUC10i5FNH / NUC10i5FNK / NUC10i3FNH / NUC10i3FNK
Dimensions 95 x 113.5 x 247.9 mm (W x D x H)
Drive bays 2.5” SSD/HDD x 1 (up to 9.5mm)
Front I/O Power button, power and HDD LED, IR receiver opening, USB Type-A, USB Type-C, HD audio in / out
Antenna fitting holes 2
Security Kensington lock
VESA mounting Support
Product code A-NUC52-A1B / A-NUC52-M1Bl
Data sheet Download (PDF)
Data sheet Print view

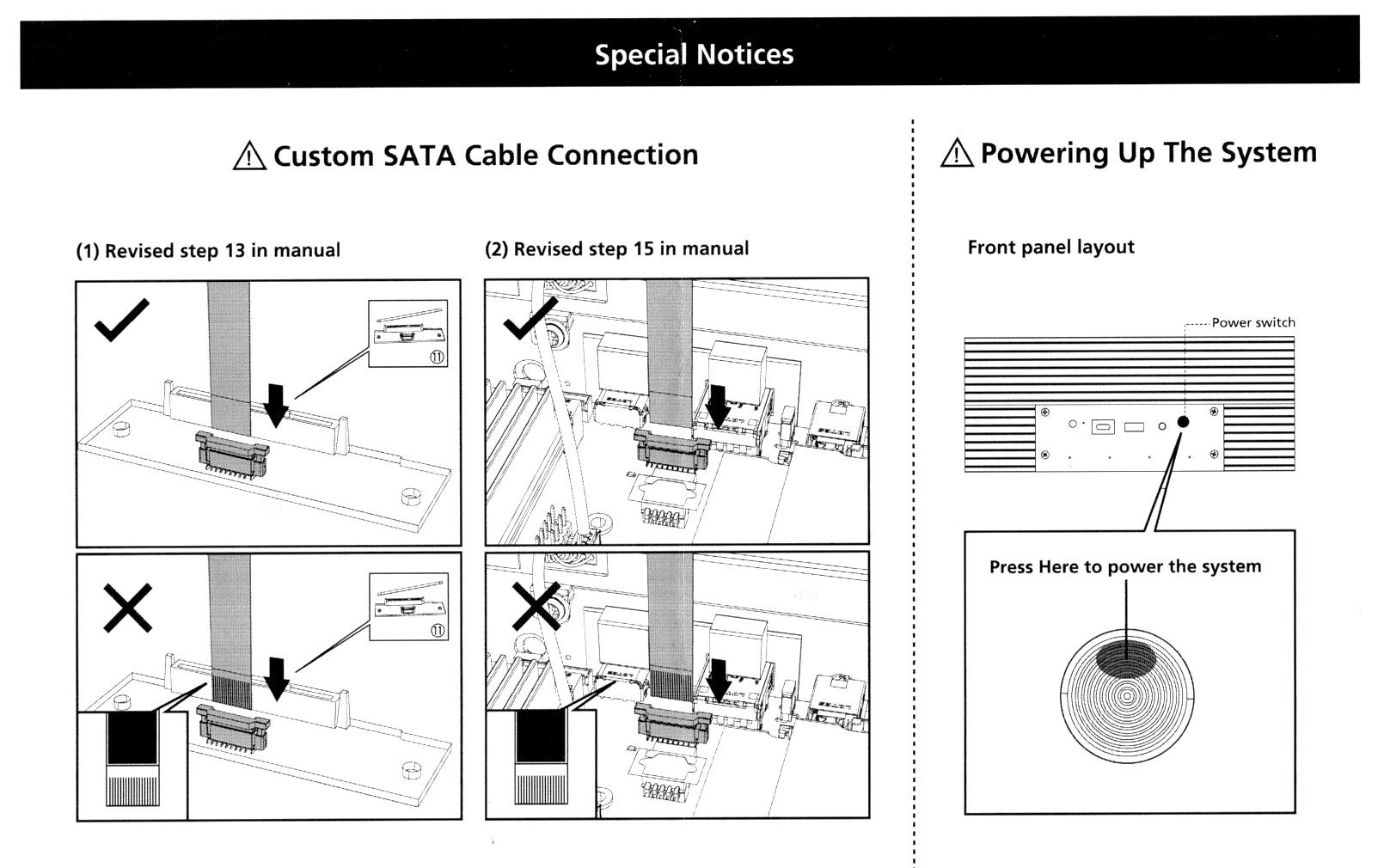

Special Notices Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 4 ratings
5 von 5 Sternen from ruemmele.net am 06.10.2020 |

Super Gehäuse, einfach zu montieren, sieht optisch gut aus, und absolut lautlos!

5 von 5 Sternen from jRIDE61b0 am 15.07.2020 |

I have been using an Akasa fanless casing on a 5th gen i5 NUC for 2 years with very good rresults. I upgraded to a Nuc10 i7 and I expected to have the same results specially since the processors have only a TPD of 15W. Unfortunately my experience is not the best one. 1st you loose the SD card access. 2nd the power button is not fully aligned with the switch and it consistently stops working. I ended up removing it. 3rd and even worse, i get thermal shutdowns quite oftenly. I didn't even tried CPU stress benchmark since the cpu already runs between 50C to 60C while just regular web browsing. There is another user at amazon.com with exactly the same issues. I am in contact with Akasa. If I am able to solve the issues I will update the review.

Update from :2020-08-04 09:29
The case is well built and looks nice but there are some issues to take into consideration in order to avoid problems. First is the heat management, the case seems to be certified for a TDP of 25W and at least in an i7 during turbo boosts the TDP can be considerably higher leading to regular over-heat of the system and consequent shutdown. After contacting Akasa support they suggested to limit the TDP to 25W in the BIOS setting and since then the system only overheated once during a windows update (I guess that while the system is in the boot the turbo settings might be slightly different. Second is the power button, you cannot use it like a regular button you have to press in a very specific spot otherwise the switch will not make contact. Akasa seems to have issued a pdf describing the sweet spot and are taking measures to correct the issue. Third issue is that you lose access to the SD card reader. Not a huge problem but also not obvious to all. So, in conclusion I was ok to sacrifice a bit of the performance in order to have a fanless and stable system. If you want to fully explore the CPU I would advise against this case.

4 von 5 Sternen from gmpvandam am 21.07.2020 |

The build quality looks good to me. Items fitted perfectly. Also there was an extra flyer how to use the power on/off button as there seems to be confusions about it. All items needed to assemble the NUC into the case were there. With the exception of the Wireless antenna's and RP-SMA pigtails.
You need these to get the bluetooth and WiFi working. I used the Akasa A-ATC01-150GR pigtails. I can see why they are not included. It is a delicate procedure to connect them to the motherboard as the connectors are tiny. Also the connection is underneath the NVMe. So you want to connect them before mounting an NVMe.
Before I assembled the NUC into the Akasa Turing FX, I ran the AIDA64 stability test on the stock Intel NUC10i7FNK . I had to stop it very soon, because some cores reached 100 deg Celsius and I did not want to damage the NUC.
Assembling went well. Do not forget the LED covers that are on the NUC's mainboard.
After assembling the NUC in the Akasa case, the same test, but fan-less, got up to 65 deg Celsius and stabilized at approx. 60 deg. Celsius.
Normal operation with use of MS Office the system now is stable about 32 deg. Celsius.
So I was very happy with that result and that made me buy a 1TB SATA SSD to install my (X-Box) Play Anywhere games and try that. Most of the games either reported insufficient hardware or did not start up at all because of that. I ran the game that did start (Zoo Tycoon) and tested it. After a few minutes, the system shut down with an overheat error. The case was very warm. So I figure that the AIDA64 stability test does not push systems to the limit. I removed the 1TB SSD to be of use in a different system.
I have Windows 10 installed on a NVMe 250GB Samsung 970 EVO plus, together with 16GB ram.
This makes it a very responsive system. Boots up within 25 seconds an gives a very responsive Office and browsing experience. also, according AIDA64, the system uses very little power. I have not measured this yet with an external power meter.
As this is my main purpose, I am not blown away, but satisfied with the result.

5 von 5 Sternen from akerblad am 16.06.2020

Its bigger than fan case but CPU temperature at max/ full 100% load went down from 80C to 45-50C with the Akasa Turing FX case. Totally silent now!
Very good fit of the parts! Only confusing thing was how to turn the powerbutton.
Needed to adjust one side to get it to fit. The drilled hole in the power button needs to be turned towards the user.
Very, very pleased with this high quality product!
I also installed the WiFi antennas. Could be good if miniPC offered these also. They are not included in the kit.
Best regards
Johan
