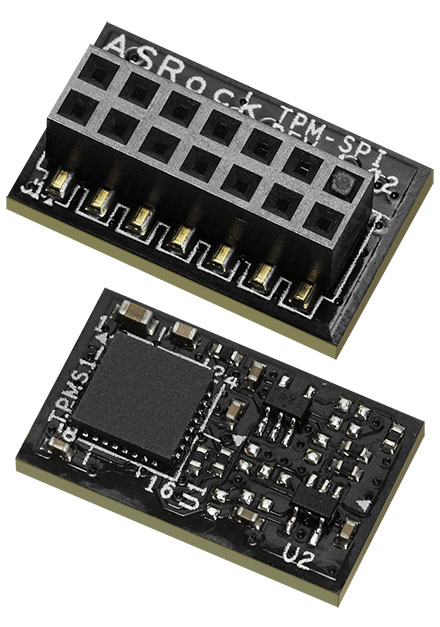

ASrock TPM-SPI 2.0 (90-MCA080-00UBNZ/80-MCA080-1B01) (14pin, Trusted Platform Module)

ASrock TPM-SPI 2.0 (90-MCA080-00UBNZ/80-MCA080-1B01) (<b>14pin</b>, Trusted Platform Module)
  • TPM 2.0 !
  • 13 pin connector !
  • SPI Interface !
  • 80-MCA080-1B01 !

The Trusted Platform Module (TPM) is a security device on the system board that will hold computer-generated keys for encryption. It is a hardware-based solution that helps to avoid attacks by hackers looking to capture passwords and encryption keys.

Compatible with all mainboards with TPM header.


  • Compatible with Win 10, UEFI OS
  • Dimmension: 16,51mm x 10,16mm
  • 14-1pin

  • Compliant to TPM Main Specification, Family "2.0", Level 00, Revision 01.16
  • SPI interface
  • TPM 2.0
  • 13 pin connector
  • Meeting Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platf [more]

    Share

49.95 EUR
incl. 19% VAT, plus shipping
In Stock (more than 100 pcs)

Add to cart

The Trusted Platform Module (TPM) is a security device on the system board that will hold computer-generated keys for encryption. It is a hardware-based solution that helps to avoid attacks by hackers looking to capture passwords and encryption keys.

Compatible with all mainboards with TPM header.


  • Compatible with Win 10, UEFI OS
  • Dimmension: 16,51mm x 10,16mm
  • 14-1pin

  • Compliant to TPM Main Specification, Family "2.0", Level 00, Revision 01.16
  • SPI interface
  • TPM 2.0
  • 13 pin connector
  • Meeting Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform qualification
  • Random Number Generator (RNG) according to NIST SP800-90A
  • Full personalization with Endorsement Key (EK) and EK certificate
  • Standard (-20..+85°C) and Enhanced temperature range (-40..+85°C)
  • PG-VQFN-32-13 or PG-UQFN-32-1 package
  • Pin compatible to OPTIGA™ TPM SLB 9670 TPM1.2 version
  • Optimized for battery operated devices: low standby power consumption (typ. 110µA)
  • 24 PCRs (SHA-1 or SHA-256)
  • 7206 Byte free NV memory
  • Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN)
  • Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX)
  • Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_MIN)
  • Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_MIN)
  • Up to 8 NV counters
  • Up to 1 kByte for command parameters and response parameters
  • 1280 Byte I/O buffer

Data sheet Download (PDF)
Data sheet Print view
