AVerMedia EN715-BBC3-0000 CarrierBoard (for NVIDIA Jetson Nano/Xavier NX)

AVerMedia EN715-BBC3-0000 CarrierBoard (for NVIDIA Jetson Nano/Xavier NX)
  • NVIDIA !
  • Jetson Nano !

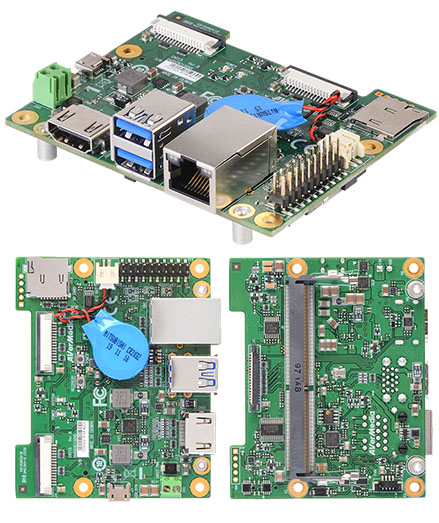

AVerMedia AVerAI carrier board EN715 is designed for NVIDIA® Jetson Nano™ (Version B01)/ Xavier™ NX module and for the industry applications in the environment with the high physical space concern and operation in the temperature range from 0°C to 70°C. It features the very compact dimensions of 70.6mm (L) x 87mm (W) x 27.3mm (H), with four Ø 3.2 mounting holes for the highly reliable field installation.
AVerAI EN715 can provide the access to a list of rich I/O functions, which includes 2x 2 Lane MIPI CSI-2, 1x 4 Lane MIPI CSI-2 MIPI Camera Input, 1x 4Kp60 HDMI output, 2x USB 3.0, 1x GbE RJ-45, 20-pins GPIO expansion, 1x Micro SD card slot, and 1x Micro-B USB 2.0 for
[more]

Share

259.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart

AVerMedia AVerAI carrier board EN715 is designed for NVIDIA® Jetson Nano™ (Version B01)/ Xavier™ NX module and for the industry applications in the environment with the high physical space concern and operation in the temperature range from 0°C to 70°C. It features the very compact dimensions of 70.6mm (L) x 87mm (W) x 27.3mm (H), with four Ø 3.2 mounting holes for the highly reliable field installation.
AVerAI EN715 can provide the access to a list of rich I/O functions, which includes 2x 2 Lane MIPI CSI-2, 1x 4 Lane MIPI CSI-2 MIPI Camera Input, 1x 4Kp60 HDMI output, 2x USB 3.0, 1x GbE RJ-45, 20-pins GPIO expansion, 1x Micro SD card slot, and 1x Micro-B USB 2.0 for recovery. It also comes with a single-mold PCB terminal block module for the easy power connection.
With the compact dimensions, design for reliable field installation, and the rich I/O functions, EN715 is the best cost-effective choice for AIoT edge computing in the intelligent video analytics applications of Smart Retail, Smart Camera, Smart Medical and Smart City.

  • Fully support NVIDIA® Jetson Nano™ (Version B01)/Xavier™ NX module
  • 1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI outputs
  • 2x 2 Lane MIPI CSI-2
  • 1x 4 Lane MIPI CSI-2
  • 20-pin Expansion header
  • 1x micro-SD card slot
  • Operating temperature: 0°C ~ 70°C
  • Dimension: 87mm x 70.6mm x 27.3mm

Model EN715
Type Carrier Board
NVIDIA GPU SoC Module Compatibility NVIDIA® Jetson Nano™ (Version B01)/Xavier™ NX module
Networking 1x GbE RJ-45
Display Output 3840 x 2160 at 60Hz
Temperature Operating temperature 0°C~70°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs •       2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector (Compatible  on NVIDIA® Jetson Nano™ Developer Kit) •       1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector
USB 1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A
Storage 1x micro-SD card slot
Expansion Header 20 pins: 2x I2C, 1x UART, 9x GPIOs
Input Power 3.5mm Screw Terminal; 9V~19V is recommended.
Buttons Power and Recovery
RTC Battery Support RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical Info W: 87mm x L: 70.6mm x H: 27.3mm (3.43” x 2.78” x 1.07”) Weight: 70g
Certifications CE, FCC, KC
Data sheet Download (PDF)
Data sheet Print view
Datasheet Download (PDF)
Manual Download
