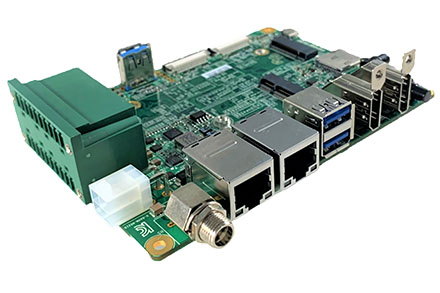

AVerMedia NX215 Carrierboard (NVIDIA Jetson Xavier NX/ TX2 NX/ NANO)

AVerMedia NX215 Carrierboard (NVIDIA Jetson Xavier NX/ TX2 NX/ NANO)
  • NVIDIA® !
  • 2x Gbe LAN !
  • 2x HDMI !
  • Mega 4 !

AVerMedia AVerAI Carrier board NX215 supports NVIDIA® Jetson Xavier™ NX/TX2 NX/NANO module and is designed for the industry applications in the environment with the high physical space concern and operation in the temperature range from 0°C to 70°C. It features the very compact dimensions of W: 120mm x L: 90mm
With the compact dimensions, design for reliable field installation, and the rich I/O functions, NX215 are the best costeffective choice for AIoT edge computing in the intelligent video analytics applications of Smart Retail, Smart Camera, Smart Medical and Smart City.

  • It applies to NVIDIA® Jetson Xavier™ NX/ TX2 NX/ NANO module
  • [more]

    Share

249.00 EUR
incl. 19% VAT, plus shipping
Available in 1-3 days

Add to cart

AVerMedia AVerAI Carrier board NX215 supports NVIDIA® Jetson Xavier™ NX/TX2 NX/NANO module and is designed for the industry applications in the environment with the high physical space concern and operation in the temperature range from 0°C to 70°C. It features the very compact dimensions of W: 120mm x L: 90mm
With the compact dimensions, design for reliable field installation, and the rich I/O functions, NX215 are the best costeffective choice for AIoT edge computing in the intelligent video analytics applications of Smart Retail, Smart Camera, Smart Medical and Smart City.

  • It applies to NVIDIA® Jetson Xavier™ NX/ TX2 NX/ NANO module
  • 2x GbE, 3x USB 3.0, 2x 4Kp60 HDMI outputs
  • 1x micro-SD card slot
  • Operating temperature: 0°C ~ 70°C (TBD)
  • Dimension: 120mm x 90mm



Tabelle

Model NX215
Type Carrier board
NVIDIA GPU SoC Module Compatibility It apply to NVIDIA® Jetson Xavier™ NX/ TX2 NX/ NANO module
Networking 2x GbE RJ-45
1xM.2. key E 2230 for wifi (NANO don’t support)
Display Output 2x HDMI 2.0 (3840 x 2160 at 60Hz)
(NANO supports 1x HDMI 2.0 )
Temperature Operating temperature 0°C~70°C (TBD)
Storage temperature -40°C ~ 85°C
Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs (Internal) • 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector (Compatible on
NVIDIA® Jetson Xavier™ NX Developer Kit)
• 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector
USB 1x USB 2.0 Micro-B for recovery
3x USB 3.0 Type-A (1xinternal)
Storage 1x micro-SD card slot
1xM.2. key M 2280 for SSD
Expansion Header (Internal) 20 pins: 2x I2C, 1x UART, 4x GPIOs, 2xCAN (EU terminal block)
Input Power DCINJACK on board & ATX 4pin
12V/5A, 9V~19V is recommended.
Power Cord US/JP/EU/UK/TW
Fan Module Heat sink with fan (optional)
Buttons Power and Recovery
RTC Battery Support RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical Info 120mm (W) x 90mm (L)
Weight: 130 g (TBD)
Certifications CE, FCC
BSP 4.6 for Xavier NX ready in July/2021
4.6 for NANO/TX2 NX ready in Aug/2021
Data sheet Download (PDF)
Data sheet Print view
