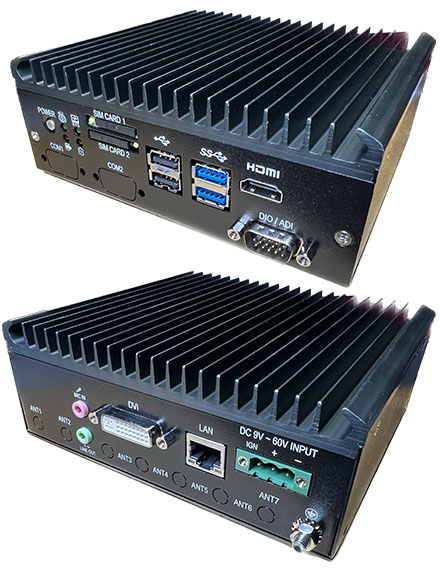

FleetPC-4-F Car-PC (Intel Celeron N3060 2x2.48Ghz, Autostart-Controller, 9-60V Power Supply) [FANLESS]

FleetPC-4-F Car-PC (Intel Celeron N3060 2x2.48Ghz, Autostart-Controller, 9-60V Power Supply) [<b>FANLESS</b>]
3D 360° View
  • Fanless !
  • 5G M.2 modem supported !
  • eMark certified !
  • VBOX-3131 !

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

For a full PC you need in addition :
- 1x M.2 2280 M-Key SSD
- 1x DDR3L-1600 SO-DIMM up to 8GB

The PC is completely fanless and is equipped with an Intel Celeron N3060 2x2.48GHz CPU.

Features :
- Fanless
- Intel Dual Core Celeron N3060 2.48GHz CPU
- Integrated, intelligent Automotive power supply (9-60V DC)
- Wireless support 5G/LTE/GPS, Wifi+Bluetooth (by Optional M.2 Modules)
- Ultra compact Design 150 x 13
[more]

Share

598.00 EUR
incl. 19% VAT, plus shipping
In Stock (16 pcs)

Add to cart

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

For a full PC you need in addition :
- 1x M.2 2280 M-Key SSD
- 1x DDR3L-1600 SO-DIMM up to 8GB

The PC is completely fanless and is equipped with an Intel Celeron N3060 2x2.48GHz CPU.

Features :
- Fanless
- Intel Dual Core Celeron N3060 2.48GHz CPU
- Integrated, intelligent Automotive power supply (9-60V DC)
- Wireless support 5G/LTE/GPS, Wifi+Bluetooth (by Optional M.2 Modules)
- Ultra compact Design 150 x 135 x 55.3 mm
- DVI-I + HDMI
- Watchdog
- 4 x DI / 4 x DO with Relay 5V/100mA/port
- Vibration/shock tested

Dimensions / Weight 150mm W x 135mm D x 55,3mm H, 1.1kg
CPU Intel Dual Core Celeron N3060 2.48 GHz
RAM 1x SO-DDR-3L RAM (up to 8GB)
Graphics Intel HD Graphics
Whatchdog
TPM
1 - 255 Level Reset
2.0
Expansion 1 x M.2 3042/3052 B Key (PCIe+USB3.0) for LTE/5G module
1 x M.2 2230 A-E Key (PCIe+USB2.0) for Wifi+Bluetooth
1 x miniPCIe slot support (USB2.0+PCIe bus or mSATA)
OS Support Win 10, Ubuntu 16.04
Vibration & Shock Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with M.2 SSD
Operating temperature -30 ~ 60ºC, ambient w/ 0.6m/s airflow
Storage: -30 ~ 85°C
Certification CE, FCC Class A, E13, ECE R118
I/O 2 x USB 3.2 Gen 1x1
2 x USB 2.0
1 x RJ45 Ports for GbE (Intel i210AT Gigabit)
1 x HDMI, 1 x DVI-D * Use only with Single Link DVI Cables
2 x Analog Input (9~60V), 4 x DI (5V~60V), 4 x DO (5V/100mA/port)
1 x Mic-in, 1 x Line-out
7 x Pre-cut SMA holes for Antenna Connectors
2 x SIM Card Sockets Supported Onboard
Drive bays 1 x M.2 2280 M key support SATA Bus
Power supply 9V - 60V DC Power Input
- Vehicle Power Ignition for Variety Vehicle
- Power off Delay Time Setting by BIOS and Software
Scope of supply - FleetPC-4-D PC mit Intel Celeron N3060 (2x2.48Ghz), mounting adapter
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
Manual Download
Test Tools Download
Drivers (Windows) Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Tested 5G M.2 modems
OK:
Simcom SIM8202G-M2
Quectel RM500Q-AE
FiboCom FM350-GL

Not OK (too long for M.2 slot):
MeiG SRM815XEA
NVMe SSD support
Not support M.2 M Key NVMe SSD
