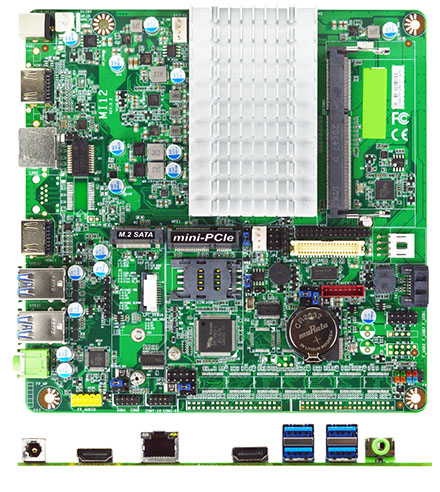

Jetway MI12-00L (Intel J3455 Apollo Lake SoC, 2x HDMI, 1x LAN)

Jetway MI12-00L (Intel J3455 Apollo Lake SoC, 2x HDMI, 1x LAN)
  • Apollo Lake SoC !
  • 2x HDMI !
  • 1x LAN !
  • mini ITX !

The JETWAY MI12-00L series are Slim Mini-ITX form factor board adopts the Intel® Apollo Lake SoC Processor. The board supports DDR3L 1866MHz SO-DIMM memory, up to 8GB. Featuring the integrated Realtek Gigabit Ethernet controller, the MI12-00L offers 10/100/1000Base-TX Ethernet device for network transmission. SATAIII (6Gb/s) interface, one M.2 (M-key, 2242/2260) and 32GB eMMC (option) offer storage devices. One Mini PCIe interface, four USB3.0 ports, two USB2.0 ports and two COM ports provide versatile expansion. The MI12-00L series offers eDP interface which can support Max. 4K@60Hz resolution. Because of the above features, MI12-00L series is one of the best selections for digital signage [more]

Share

239.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart

The JETWAY MI12-00L series are Slim Mini-ITX form factor board adopts the Intel® Apollo Lake SoC Processor. The board supports DDR3L 1866MHz SO-DIMM memory, up to 8GB. Featuring the integrated Realtek Gigabit Ethernet controller, the MI12-00L offers 10/100/1000Base-TX Ethernet device for network transmission. SATAIII (6Gb/s) interface, one M.2 (M-key, 2242/2260) and 32GB eMMC (option) offer storage devices. One Mini PCIe interface, four USB3.0 ports, two USB2.0 ports and two COM ports provide versatile expansion. The MI12-00L series offers eDP interface which can support Max. 4K@60Hz resolution. Because of the above features, MI12-00L series is one of the best selections for digital signage and automation applications.

  • Intel® Apollo Lake series SoC Processor. (Default J3455)
  • 1* DDR3L 1866MHz SO-DIMM up to 8GB
  • 1* Realtek RTL8111H GbE
  • 2* HDMI, 1* LVDS, 1* eDP, support triple displays
  • 2* COM, 4* USB3.0, 2* USB2.0
  • 1* Mini PCIe, 1* SIM card slot
  • 1* SATA III, 1* M.2 (M-key, 2242/2260), 1* 32GB eMMC (option)
  • 12V DC-in



Model – MI02-00L
– MI02-02L (W/TPM2.0)
Form Factor – Slim Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
Processor System – Intel® Apollo Lake SoC Processor
– Intel J3455 SoC chipset
– AMI 128Mb Flash ROM BIOS
Expansion Slot – 1* Mini PCIe (full size, USB signal only)
– 1* SIM card slot
Memory – 1* DDR3L 1866MHz SDRAM SO-DIMM up to 8GB
Graphics – Intel® HD Graphics
– 2* HDMI (Max. Resolution: 3840 x 2160@30Hz)
– 1* LVDS (Max. Resolution: 1920 x 1200@60Hz, selectable with eDP, not working while using LVDS)
– 1* eDP (Max Resolution: 4096 × 2160@60Hz, selectable with LVDS, not working while using eDP)
– Support triple displays
Ethernet – 1* Realtek RTL8111H GbE
Audio – C-Media HS-100B USB Audio Chip
Storage – 1* SATAIII (6.0Gb/s)
– 1* M.2 M-key 2242/2260 (SATA interface)
– 32GB eMMC (option)
eMMC is recommend to set as primary boot device for Windows 10 OS boot up
Rear I/O – 1* RJ45
– 4* USB3.0
– 2* HDMI
– 1* Line-out
– 1* DC-in jack
Internal Connector – 2* USB2.0
– 2* RS232 (COM1~2 with Powered 5V/12V)
– 1* SATAIII
– 1* Mini PCIe (full size)
– 1* M.2 M-key 2242/2260
– 1* LVDS (Selectable with eDP, not working while using LVDS)
– 1* eDP (Selectable with LVDS, not working while using eDP)
– 1* GPIO (4in/4 out)
– 1* SMBUS
– 1* AT mode
– 1* SIM card slot
– 1* PS/2
– 1* TPM2.0 (MI12-02L only)
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments, 0,1,2…255sec
Power 12V DC-in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH
Temperature – Operating: 0°C ~ 60°C (with 0.7m/s air flow)
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
Datasheet Download (PDF)
