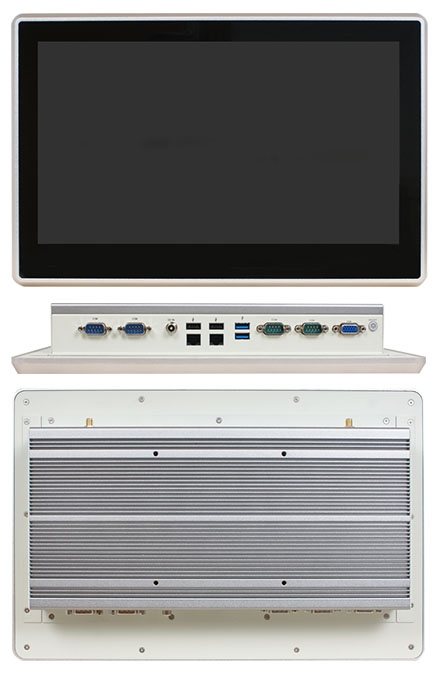

Jetway HPC134SC-FP1900B Panel-PC (Intel J1900) [13.4" Capacitive Touch Panel TFT, 4GB RAM, IP65, 9-28V DC]

Jetway HPC134SC-FP1900B Panel-PC (Intel J1900) [13.4" Capacitive Touch Panel TFT, 4GB RAM, <b>IP65, 9-28V DC</b>]
  • BayTrail-D J1900 !
  • 4GB RAM !
  • IP65 !
  • 9-28V DC !

  • 13.4” 220 nits high brightness TFT LCD with LED backlight
  • 10-points Multi Capacitive Touch
  • Intel® Bay Trail-D J1900 2.0GHz/QC processor
  • Onboard DDR3L 1333MHz DRAM 4GB
  • 2* GbE, 2* RS232/422/485), 2* RS232, 2* USB3.0, 2* USB2.0, 1* VGA
  • 1* Mini PCIe, 1* M.2 M-key (2242/2260/2280, SATA interface)
  • 9~28V DC-in
  • Front bezel meets IP65-rated protection




Share

819.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Display – IP65, NEMA 4 rugged protection, Full planar metal border
– 13.4″ With LED Backlight
– 220 nits Brightness (cd/m²)
– 262K display color
– 1366 x 768 @ 60Hz resolution
– 90°/65° viewing angle (H/V)
– 0.17925 x 0.17925 mm pixel pitch
– 16:9 aspect ratio
– 500:1 contrast ratio
– 11ms response time
Touch Screen – Projected capacitive type
– 340.00 x 200.00mm ±0.3mm active range
– Transparency ≧ 85%
– Surface Hardness ≧ 6H (JIS-5400)
– Glass haze value ≦ 3%
Case – Aluminum panel
– Iron case
– Silver + Black color
– Spray paint coating requirement
Main System – Intel® Bay Trail-D J1900 2.0GHz/QC processor
– Onboard DDR3L 1333MHz DRAM 4GB
– 64MB SPI Flash ROM BIOS
– Watchdog Timer: 256 levels, 0~255 sec.
– OS Support: Windows 7 / 8.1 / 10 / Linux (Option)
Expansion – 1* Mini PCIe for WIFI or 3G/4G
Storage – 1* SATA
– 1* M.2 M-key (2242/2260/2280, SATA Interface)
I/O Connector – 2* USB3.0
– 2* USB2.0
– 2* RS232/422/485
– 2* RS232
– 1* VGA
– 2* RJ45 (Intel I211AT GbE)
– 1* Lockable 9~28V DC jack
– 1* Power button
Power Input – 9~28V DC-in
– AC version: 100~240V AC-DC 60W power adapter or
– DC version: 12VDC with over current protection fuse
Power Consumption – 20W
Dimensions – 347.42 * 228.00 * 56.60mm
Compliance – CE, FCC, IP65 (Front)
Safety – Shock: 15G, 11ms duration
– Vibration: 5~500Hz/1 Grms
Temperature – Operating: : -10°C ~ 60°C (with W.T. DRAM/HDD in airflow condition)
– Operating: : -10°C ~ 60°C (with W.T. DRAM/HDD)
– Storage: -20°C ~ 85°C
Data sheet Download (PDF)
Data sheet Print view
