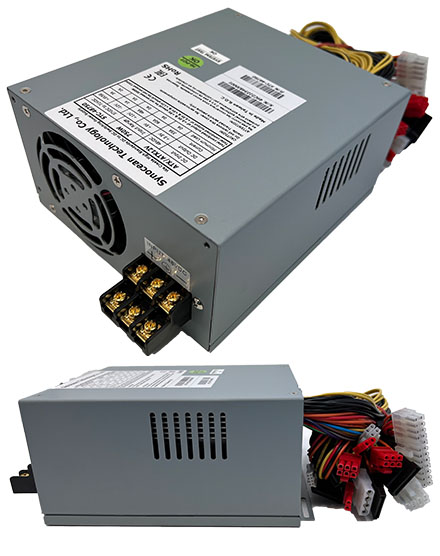

750W DC ATX Power Supply (36-72VDC) [48V]

750W DC ATX Power Supply (36-72VDC) [48V]
  • STC-48750

Now you can power every PC in your truck. 750W power and P4 connector are giving you all possibilities !
The ATX connector has 24 pins.




Share

449.00 EUR
incl. 19% VAT, plus shipping
In Stock (2 pcs)

Add to cart
Dimensions 170mm[W] × 150mm[L] × 86mm[H]
Weight 3.0 kgs
Input Voltage Range 37 - 71V VDC
Output Power maximum 750W
Efficiency 75% typical @48V DC Full Load
Output Power maximum (rails) +3.3V : 35A
+5.0V : 60A
+12.0V : 48A
Over Power Protection Peak power protected to 130%±10% of continuous rated power
Over Voltage Protection +3.3V@4.5V, +5V@6V, +12V@15.6V
Short Circuit Protection All output equipped with SCP (shutdown and latch off)
MTBF 100 000 hours @max. Load, 48V DC & 25°C ambient
Safety Standards Meet IEC60950-1, EN60950-1
Operating Temperature 0°C ~ +50°C full load
Storage Temperature / Humidity -20°C~+80°C / 10%~90% RH. (Non condensing)
Cooling 80x80x25 mm Fan x 1 pc, 70dBA @ Full Load
Connectors 1x ATX 24Pin
1x +12V(P4) 4pin
2x 4pin HDD/DVD
1x 4pin FDD
4x Serial ATA
4x 8pin Process EPS
3x PCIe (6+2)
Data sheet Download (PDF)
Data sheet Print view
