AVerMedia NX213B-16G BOX PC (NVIDIA Jetson Xavier 16GB / 8x POE) [Minimum order qty. 10 units]

PRODUCT IS CURRENTLY NOT AVAILABLE !
AVerMedia NX213B-16G BOX PC (NVIDIA Jetson Xavier 16GB / 8x POE) [Minimum order qty. 10 units]
3D 360° View
  • NVIDIA !
  • 9x GPIOs !
  • 8x POE LAN !

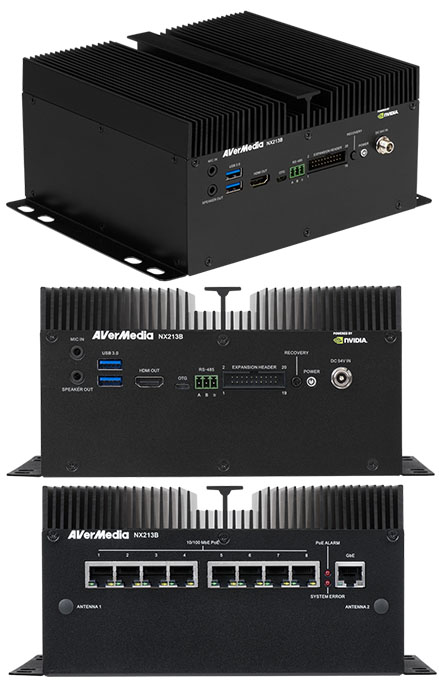

AVerMedia’s AVerAI NX213B Box PC of NVIDIA® Jetson Xavier™ NX is designed as an A.I. NVR (Network Video Recorder) for intelligent surveillance system.
This product provides 8-channel PoE (PSE) ports for IP cameras, a SATA port for storage, 1x mPCIe, 2x USB 3.0 , 1x microphone input, 1x speaker output, 1x RS-485 and 20-pin expansion header (I2C, SPI, UART, I2S), 1x HDMI 2.0 out. NX213B can operate in the temperature range from 0°C ~ 60°C (without HDD).
Benefiting from the Jetson Xavier™ NX and DeepStream SDK, it can simultaneously decode and analyze 8-channel 1080p60 IP camera videos.

  • Embedded NVIDIA® Jetson Xavier™ NX module< [more]

    Share

1959.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart

AVerMedia’s AVerAI NX213B Box PC of NVIDIA® Jetson Xavier™ NX is designed as an A.I. NVR (Network Video Recorder) for intelligent surveillance system.
This product provides 8-channel PoE (PSE) ports for IP cameras, a SATA port for storage, 1x mPCIe, 2x USB 3.0 , 1x microphone input, 1x speaker output, 1x RS-485 and 20-pin expansion header (I2C, SPI, UART, I2S), 1x HDMI 2.0 out. NX213B can operate in the temperature range from 0°C ~ 60°C (without HDD).
Benefiting from the Jetson Xavier™ NX and DeepStream SDK, it can simultaneously decode and analyze 8-channel 1080p60 IP camera videos.

  • Embedded NVIDIA® Jetson Xavier™ NX module
  • 8x 10/100 MbE with PoE
  • 1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI output
  • 20 pins with 1x UART, 2x I2C, 9x GPIOs
  • 1x RS-485 (3 pins), 1x Micro-B USB 2.0 for recovery
  • 1x mPCIe (Host Interface: USB 2.0)
  • Operating temperature: 0°C ~ 60°C (without HDD, with No-Air-Flow)
  • Dimension: W:190mm x L:175mm x H:80mm (W:225mm with mounting ears)




Model NX213B
Type Box PC
NVIDIA GPU SoC Module Compatibility NVIDIA® Jetson Xavier™ NX module
Networking 1x GbE RJ-45 8x 10/100 MbE RJ-45 with PoE (Max for the first 4 ports is 15.4W and total power budget is 100W)
Display Output 1x HDMI 2.0a/b Type-A supports maximum resolution 3840x2160 at 60Hz
Temperature Operating Temperature 0°C ~ 60°C Storage Temperature -40°C ~ 85°C Relative Humidity 40 °C @ 95%, Non-Condensing
USB 1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A (USB 3.2 Gen1 x 1)
Storage 16GB e.MMC v5.1
GPIO Expansion 1x 3.3V UART, 2x I2C, 9x GPIOs
Input Power 54V/2.78A
Buttons Power and Recovery Button (each with a RGB tri-color LED)
RTC Battery Support RTC battery and Battery Life Monitoring by MCU
Chassis Dimension/ Weight W:190mm x L:175mm x H:80mm (W:225mm with mounting ears) Weight: 4 Kg
Certifications CE, FCC,KC
Data sheet Download (PDF)
Data sheet Print view
