- NVidia Jetson AGX Orin !
incl. 19% VAT, plus shipping
In Stock (4 pcs)
|Raspberry Pi (2Lane/15-pin)||Raspberry Pi camera v2|
1. B-04: IMX179 (8M) MIPI, 1080P (30fps)
2. C-04: IMX290 (2M) MIPI, 1080P (30fps)
3. C-05: IMX290 (2M) +ISP(YUV), 1080P (30fps)
|e-con (2 Lane/1-pin)||1.e-CAM131_CUNX -4K Camera
2. e-CAM50_CUNX -5.0 MP
3. e-CAM24_CUNX -Color Global shutter Camera
|APPRO (4 Lane/36-pin)||B-03: IMX334 (4K) MIPI, 4K (30fps)|
|e-con(GMSL2)||STURDeCAM20 2. STURDeCAM25 3.NileCAM21|
|oToBrite(FPD-link III)||oToCAM250/ oToCAM206|
|APPRO (V-by-One® HS)||A-06: IMX334 (4K) V-by-One®HS x1, 4K (30fps)|

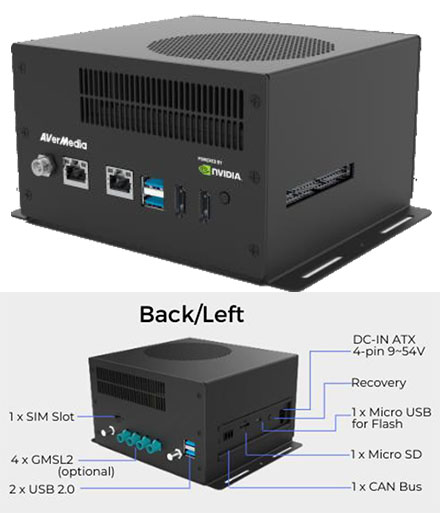

|NVIDIA Jetson SoM||NVIDIA® Jetson AGX Orin™module (32GB or 64GB)|
1x GbE RJ-45
1x 10G RJ-45
|Display Output||1x HDMI 2.0 (3840x2160at 60Hz)|
Operating temperature -25°C~70°C
Storage temperature -40°C ~ 85°C
Relative humidity 40 °C @ 95%, Non-Condensing
|MIPI & SerDes Camera (120-pin)||GMSL2/FPD-link III/V-by-One® HS(optional)|
|USB|| 1x USB 2.0 Micro-B for recovery
2x USB 2.0 Type-A
2x USB 3.2 Type-A
|Audio||Intel HD Audio analog connector|
|Storage||1x micro-SD card slot|
40-pin (UART, SPI, CAN, I2C, I2S, GPIOs )
• 1x M.2 E key (for Wi-Fi 6E)
• 1x M.2M key (for SSD or AVerMediacapture card: CL312H1, CN311-H, CN312SW, CN312MW)
• 1x Micro SIM socket
• 1xmPCIe(for 4GLTE moduleor5G module via adapter card)
• 1x PCIe x16
• 120-pin (for MIPI SerDes)
|Input Power||DC in jack on board & ATX 4-pin (54V/2.78A, 9V~54V is recommended)|
|Thermal Solution||Fan / Fanless|
|Buttons||Power and Recovery|
|RTC Battery||Support RTC Battery and Battery Life Monitoring by MCU|
|Dimensions||141.5mm (W) x 133.5mm (L) x 29mm (H)|
|Certifications||CE, FCC, KC|
