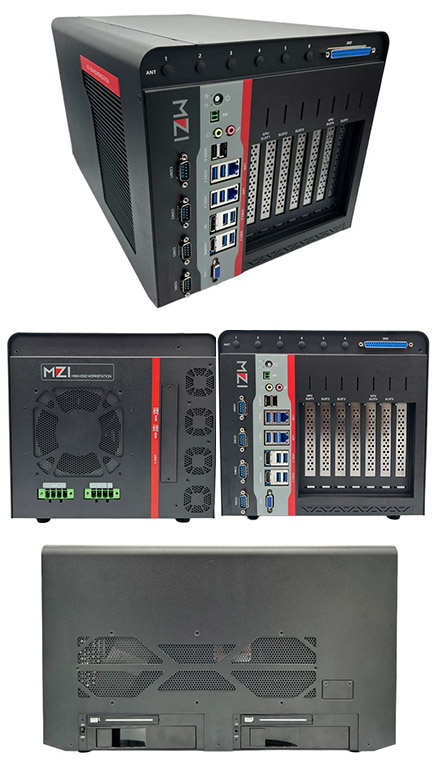

Mitac MZ1-10ADP (Intel Alder Lake-S, 2x LAN, 4x RS232, 5x PCIe)

Mitac MZ1-10ADP (Intel Alder Lake-S, 2x LAN, 4x RS232, <b>5x PCIe</b>)

Intel Alder Lake !
Intel® R680E !
2x Gigabit LAN !
5x PCIe Slot !

Intel® 12th Gen Alder Lake-S Xeon / Core i (Up to 125W)
Support 2 x DDR5 SO-DIMM (Up to 64GB)
HDMI, DisplayPort, VGA, Dual 2.5G LAN
Support 10 x USB, 4 x RS232, and 32-bit DIO
9~48V Wide Power Range

2498.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

SYSTEM	CPU	12th Gen Intel® Alder Lake-S Core i9/i7/i5/i3/Celeron/Pentium (Up to 125W)
	CHIPSET	Intel® R680E
	SYSTEM MEMORY	Max. 64GB (Xeon: ECC / Non-ECC; Core-i: Non-ECC) / 2 x 262-pin SO-DIMM / DDR5 4800 MHz
	GRAPHICS	Intel® UHD Graphics
	DISPLAY INTERFACE	VGA / DisplayPort 1.4 / HDMI 1.4
	STORAGE SLOT	2 x mSATA / 1 x M.2 B Key 2280/2260/2242 Slot / 2 x Hot Swappable 2.5” HDD Tray (support 7-9.5mm height) / 2 x Hot Swappable 3.5” HDD Tray / 1 x CFast slot / 1 x M.2 M Key 2280/2262/2242 SSD slot
	ETHERNET	1 x Intel® I225-LM 2.5GbE LAN + 1 x Intel® I225-V 2.5GbE LAN
	AUDIO	Realtek® ALC888S
	I/O CHIPSET	Nuvoton NCT6126D
	TPM	Nuvoton NPCT750AAAYX TPM2.0
	EXPANSION SLOT	1 x M.2 3052 / 3042 / 2242 / 2260 / 2280 B key (USB3.0 , SATAIII, PCIeX1) w/ SIM slot / 1 x M.2 2230/ 2242 / 2260 / 2280 M key (PCIeX4 NVME, SATAIII) / 1 x M.2 2230 E key (CNVi , PCIeX1, USB 2.0) / 2 x Mini PCIe Full size (USB2.0 / SATAIII / PCIeX1) / #1: 1 x PCIe X16 (Gen4) or PCIe X8 (Gen4) #2: 1 x PCIe X4 in PCIe X16 physical connector (Gen4) #3: 1 x PCIe X4 in PCIe X16 physical connector (Gen4) #4: 1 x PCIe X8 in PCIe X16 physical connector (Gen4 x8 = Gen3 x16 Bandwidth) #5: 1 x PCIe X1 in open ended connector (Ge
	INTERNAL SPEAKER	1 x Buzzer
	INDICATOR	Power Button / Power LED / HDD LED
	FRONT I/O	1 x HDMI 1.4 / 1 x 2-pin Terminal Block Remote Power on / off / 3 x RS232 / 4 x USB3.2 Gen2 / 4 x USB3.2 Gen1 / 6 x SMA hole with rubber cap / 1 x DB37 connector for 32 bit DIO / 1 x DisplayPort 1.4 / 1 x VGA / 2 x USB 2.0 / 1 x RS232 / 422 / 485 / 1 x Mic-in / 1 x Line-out
	REAR I/O	2 x 4-pin Terminal Block Power Input / 2 x SIM slot to M.2 B Key slot / 2 x SIM slot to mPCIe slot / 1 x CFast slot
POWER REQUIREMENT	POWER INPUT	9~48V Wide Range DC Input w/ Terminal Block Connectivity
POWER REQUIREMENT	POWER ADAPTER	Optional 300W/1000W AC to DC PSU
MECHANICAL	THERMAL DESIGN	Fan
	MOUNTING	Wallmount
	DIMENSIONS (W X D X H)	264 x 415 x 245mm
	WEIGHT	13kg (28.7 lb)
ENVIRONMENTAL	OPERATING TEMPERATURE	Please consult with your sales contact window about the Operating Temperature of GPU Card Configurations / -40°C ~ 70°C (w/ 35W CPU, w/o GPU card) -40°C ~ 60°C (w/ 65W CPU, w/o GPU card) -40°C ~ 50°C (w/ 80W CPU, w/o GPU card) -40°C ~ 40°C (w/ 125W CPU, w/o GPU card) Max OT limit -10°C w/ dual GPU card / with 0.7m/s Air Flow and Wide Temperature Memory/Storage
	STORAGE TEMPERATURE	-40 ~ 85°C (-40 ~185°F)
	OPERATING HUMIDITY	10% ~ 90% R/H (Non-condensing)
	STORAGE HUMIDITY	10% ~ 95% @85°C non-condensing
	VIBRATION RESISTANCE	MIL-STD-810H, Follow Method 514.8C-I Category 4 for Truck
	SHOCK RESISTANCE	MIL-STD-810H 516.8 procedure I - functional shock, Operating 20G, 11ms (Follow IEC 60068-2-27 half sine)
	CERTIFICATION	CE / FCC Class B
OS	OS SUPPORT	Windows® 10 IoT LTSC 64bit (LTSC 2021) / Ubuntu 22.04
PACKING LIST	PACKAGE	1 x Embedded System / 1 x Wall Mount Brackets / 1 x 2 pin Terminal Block Male Connector / 2 x 4 pin Terminal Block Power Connector

Data sheet	Download (PDF)
Data sheet	Print view
Mitac Catalogue	Download (PDF)
Mitac Edge AI Guide	Download (PDF)
