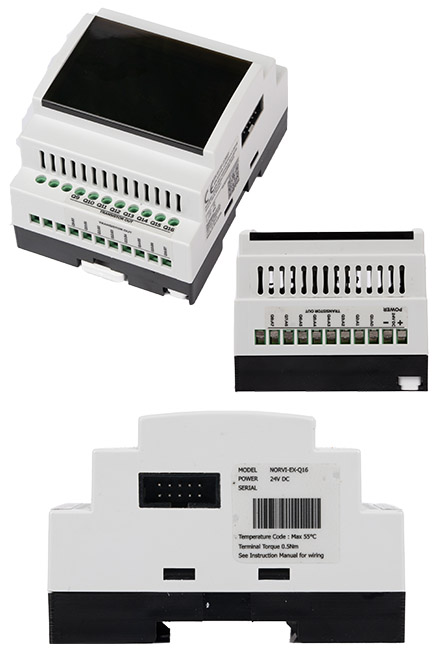

NORVI-EX-Q16  (16 x Open Collector Transistor Outputs)

NORVI-EX-<b>Q16</b>  (16 x Open Collector Transistor Outputs)
  • I2C !
  • MCP23008 !

Expansion Module Adding functions for controllers NORVI is always about on connectivity and expandability. This is the time to make use of Expansion port of NORVI Controllers. The series of expansion modules connects to NORVI IoT controllers via its I2C and UART connections. You can add more features to the NORVI Controller without huge customizations. NORVI provides true technology with reliability for industrial applications being worlds iot hardware manufacturer. We have included NB-IoT, LoRa and analog modules as expansions.

  • Optically Isolated Transistor Outputs
  • Supports upto loads of 36V DC
  • 300mW Power Dissipation
  • MCP23008 Port Expander [more]

    Share

129.95 EUR
incl. 19% VAT, plus shipping
In Stock (1 pcs)

Add to cart

Expansion Module Adding functions for controllers NORVI is always about on connectivity and expandability. This is the time to make use of Expansion port of NORVI Controllers. The series of expansion modules connects to NORVI IoT controllers via its I2C and UART connections. You can add more features to the NORVI Controller without huge customizations. NORVI provides true technology with reliability for industrial applications being worlds iot hardware manufacturer. We have included NB-IoT, LoRa and analog modules as expansions.

  • Optically Isolated Transistor Outputs
  • Supports upto loads of 36V DC
  • 300mW Power Dissipation
  • MCP23008 Port Expander
  • Address Configurable Over DIP Switch
  • 16 x Open Collector Transistor Outputs

Product Specification
Range of product NORVI EX
Product type I/O Expansion Module
Rated supply voltage 24V DC
Discrete input number 16 x Open Collector Transistor Outputs
Communication I2C
Main
Supply voltage limits 20.4….28.8V
Inrush current <=10A
Maximum Collector Current 600mA
Collector Power Dissipation 300mW
Input impedance 4.7k Ohm for input
Local signaling 1 LED green for PWR
Electrical connection Removable screw terminal block for inputs and outputs
(pitch 5.08 mm)
Mounting support Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
Plate or panel with fixing kit
Height 90.50 mm
Depth 56.60 mm
Width 36.30 mm
Product weight 0.13 Kg
Environment
Resistance to electrostatic discharge 4kV on contact
8kV on air
Resistance to electro magnetic fields 10 V/m (80 MHz …… 1GHz)
3 V/m (1.4 MHz …… 2 GHz)
1 V/m (2 MHz …… 3 GHz)
Immunity to microbreaks 10 ms
Relative humidity
10….95% without condensation in operation
IP degree of protection IP20
Operating altitude 0…2000m
Operating Temperature –40°C to +125°C
Storage altitude 0…3000m
Shock resistance 15 gn for 11 ms
Data sheet Download (PDF)
Data sheet Print view
