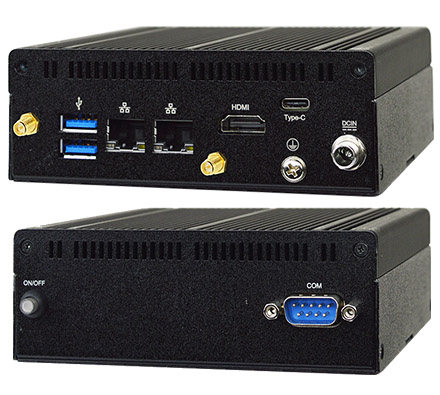

Jetway HBFBP01-6210-B (Intel Intel Elkhart Lake SoC, 2x LAN, 9-36V DC)

Intel Elkhart Lake SoC !
2x LAN !

Intel Elkhart Lake SoC Processor
1* DDR4 3200MHz SO-DIMM up to 32GB
1* HDMI, 2* USB3.1, 1* USB-C, 2* RJ45, 1* COM
Support 9~36V wide voltage input
DC12V_40W Adapter

339.00 EUR
incl. 19% VAT, plus shipping
Available in 3-7 days

Model	– HBFBP01-6210-B – HBFBP01I-6210-B (WiFi model)
CPU/Chipset	– Intel® Elkhart Lake SoC Processor
BIOS	– AMI Flash ROM
Memory	– 1* DDR4 3200MHz Dual Channel SO-DIMM up to 32GB
Storage	– 1* M.2 M-key (2242, PCIe Gen.3 x2/SATA interface) support NVMe
Expansion	– 1* M.2 E-key (2230, PCIe Gen.3 x1/USB2.0 interface)
Rear Panel I/O	– 2* RJ45 – 1* DC-in – 1* HDMI – 2* USB3.1(Gen.2) A Type – 1* USB3.1(Gen.2) C Type
Front Panel I/O	– 1* Power button + Power LED – 1* RS232/422/485
Internal Connector	– 1* GPIO – 2* USB2.0
Power Source	– Adapter : AC 90~240V input / DC12V_40W output / Lock type – System : DC9~36V input support
Compliance	– CE, FCC, LVD, RoHS, ErP Ready
Dimensions	– System: 125 (W) x 109 (D) x 44.5 (H) mm – Color Box : 158 (W) x 167 (D) x 123.6 (H) mm
Temperature	– Operating Temperature: -20 ~ 60° C (Under the condition of using M.2 interface SSD) – Storage Temperature: -40 ~ 85° C – Humidity: 10% ~ 95% RH @40°C (non-condensing)
OS Support	– Windows 11, Linux

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (Rackmount)	Download (PDF)
Jetway Catalog (Barebones)	Download (PDF)
