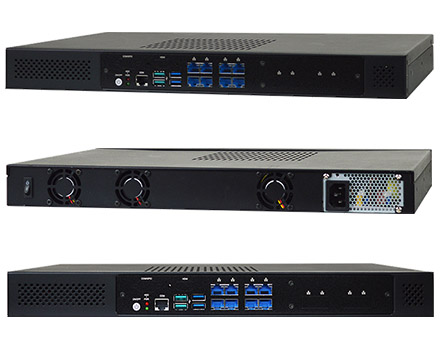

Jetway HBJC153I23-Q670B (Intel 12th Gen. LGA1700, 8x LAN)

Jetway HBJC153I23-Q670B (Intel 12th Gen. LGA1700, 8x LAN)
  • LGA1700 !
  • 8x LAN !
  • 2x COM !

  • Intel® LGA1700 supports 12th Gen. Core Processor
  • 2* DDR5 4800MHz SO-DIMM up to 64GB
  • 2* 2.5” SATA HDD device support RAID 0, 1, 5, 10
  • 1* M.2 (M-key, 2242/2280), 1* M.2 (M-key, 2280), 1* M.2 (E-key), 1* M.2 (B-key), 1* PCIex4
  • 8* 2.5GbE, 2* USB3.2 (Gen.2), 2* USB3.2 (Gen.1), 2* COM
  • 1* HDMI
  • ATX Power Input with 24pin ATX + 4pin 12V
  • Support TPM2.0 (option)




Share

809.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Model – HBJC153I23-Q670B (Default)
– HBJC153I23-Q670G4 (Expansion PCIe 4* Lan Card) system total up to 12* LAN ports
– HBJC153I23-Q670B4 (Expansion PCIe 4* Bypass Lan Card) system total up to 12* LAN ports
MB Model – MI23-Q6700 (Q670E)
– MI23-Q6702 (optional , Q670E,onboard TPM2.0)
CPU/Chipset – Intel® 12th/13th LGA1700 Socket Core i7/i5/i3/Pentium/Celeron Processor(Max. 65W TDPs under 180A)
– Intel® Q670E Chipset
BIOS – AMI Flash ROM
– Support recover crashed BIOS data tool by a USB flash pen driver: Using JetBIOS SW back up tool with any external USB ports
Memory – 2* DDR5 4800MHz SO-DIMM up to 64GB
Network – 7* Intel® i225-V 2.5GbE
– 1* Intel® i225-LM 2.5GbE
Graphics – Intel® UHD Graphics, shared memory
– 1* HDMI (Max Resolution: 1920×1080@60Hz)
Storage – 1* M.2 M-key (2242/2280, PCIe Gen.4×4 w/SATA interface)
– 1* M.2 M-key (2280, PCIe Gen.4×4 w/SATA interface) support NVMe
– 2* 2.5” SATA HDD device support RAID 0, 1 (support 2.5” HDD with a height≦10mm)
Expansion – 1* M.2 E-key (2230, USB2.0/PCIe x1) support CNVi
– 1* M.2 B-key (3042, USB3.2 Gen.1/USB2.0/PCIe x1 interface) support 4G Module
– 1* PCIe Gen.4×4 slot
Rear Panel I/O – AC input CON
– Power on/off SW
Front Panel I/O – 8* RJ45
– 2* USB3.2 (Gen.2)
– 2* USB3.2 (Gen.1)
– 1* COM (RS232) (Not installed when leaving the factory, the wires are placed in the parts box)
– 1* HDMI (Not installed when leaving the factory, the wires are placed in the parts box)
– 1* Alarm LED, 1* Power LED
– Power on/off SW
Internal Connector – SIM Card Holder
Power Source – Power : 1U FLEX 300W POWER
– MB : ATX Power Input (24pin ATX + 4pin 12V)
Compliance – CE, FCC, LVD, RoHS, ErP Ready
Dimensions – System: 430 (W) x 252 (D) x 44(H) mm
– Box: 560 (W) x 400 (D) x 380 (H) mm
Temperature – Operating Temperature: 0 ~ 50° C
– Storage Temperature: -40 ~ 85° C
– Humidity: 10%~95% @40° C (non-condensing)
OS Support – Windows 11, Linux
