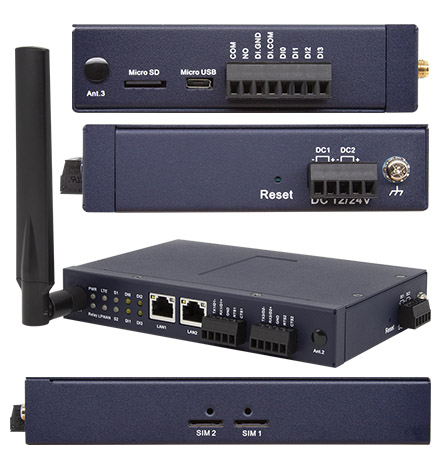

EverFocus PG-M100 (ARM Cortex M4, Protocol Gateway)

EverFocus PG-M100 (ARM Cortex M4, Protocol Gateway)


  • Powered by ARM Cortex M4
  • Dual wireless connectivity (LTE 4G Quectel.EG25-G optionally available)
  • Wireless: CAT-NB/M1, Wi-SUN upon request
  • Dual 10/100 Mbps Ethernet ports
  • Multiple I/O interface connections for data collection
  • Embedded Real-Time OS support
  • Data logger with time stamp
  • Wide operating temperature range -20˚C to 70˚C





Share

398.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
CPU/MCU ARM Cortex M4F
Memory 128 M-bit Flash
Storage External Micro SD slot, Max. 32GB
Real time clock Yes
Indicators LED indicator x 10
Cellular Mini PCIe Connector x 1 (UART Signal)
Wireless LAN Mini PCIe Connector x 1 (UART Signal)
Operating System Embedded real-time OS: Zephyr Version: 3.0.99
Support Protocol Modbus RTU to MQTT
Power Requirement 12/24 VDC
Power Consumption 12V/2.29W, 24V/3.14W, Normal used
Dimension 6.3” x 4.18” x 1.07” (160 x 106 x 27 mm)
Weight 670 g
Mounting/Installation Din Rail
Operating Temperature -4 °F ~ 158 °F (-20 °C ~ 70 °C)
Storage Temperature -40 °F ~ 176 °F (-40 °C ~ 85 °C)
Operating Humidity 5% ~ 95% relative humidity, non-condensing
Regulations CE, FCC
Carrier Planning
Serial Port 2 x RS232/RS485(2W,3W), Terminal Block
Ethernet 2 x 10/100Mbps LAN, RJ45
DI/DO 4 x Channels, Wet/Dry Contact, Terminal Block 2 x Channels, Normal open (NO), Terminal Block
Power Connector Terminal Block
Debug Port 1 x Micro USB for console
Expansion Slot 2 x SIM card slot, 1 x Micro SD slot
LTE 4G (CAT 1) (by model) 3GPP Rel.9 compliant protocol Frequency bands: FDD LTE: B1 /B2 /B3 /B4 /B5 /B7 /B8 /B12 /B13 /B18 /B19 /B20 /B25 /B26 /B28 TDD LTE: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 SIM card size: Micro-SIM slot Antenna type: External type Antenna connector: SMA-Male
CAT NB / CAT M1 (by model) 3GPP Rel.9 compliant protocol Frequency bands: FDD LTE: B1 /B2 /B3 /B4 /B5 /B7 /B8 /B12 /B13 /B18 /B19 /B20 /B25 /B26 /B28 TDD LTE: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 SIM card size: Micro-SIM slot Antenna type: External type Antenna connector: SMA-Male
GPS (by model) GPS/GLONASS/BeiDou (Compass)/Galileo
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
