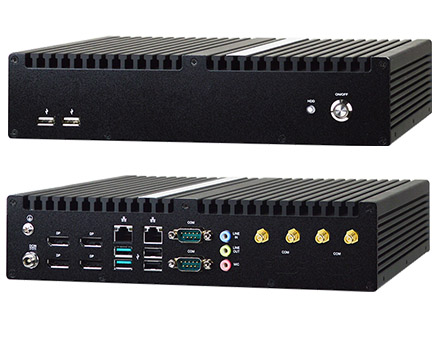

Jetway HBJC501I1U-V1605B (AMD RYZEN V1605B, 2x LAN, 12-28V DC Input, 4x DP)

Jetway HBJC501I1U-V1605B (AMD RYZEN V1605B, 2x LAN, 12-28V DC Input, 4x DP)
  • AMD RYZEN V1605B !
  • 4x DP !
  • 6x USB !
  • 2x LAN !

  • AMD RYZEN V1605B 2.0GHz/QC Core Processor
  • 2* DDR4 2400MHz up to 32GB
  • 1* 2.5”SATA, 1* M.2 E-key, 1* M.2 M-key, 1* M.2 B-key
  • Support 4* DP
  • 2* COM (Max : 6* COM), 2* LAN, 2* USB3.2, 4* USB2.0, 1* Line in, 1* Line out, 1* Mic
  • Mini ITX Form Factor (170 *170 mm)
  • Support TPM2.0 (optional)
  • DC12~28V input





Share

779.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Model – HBJC501I1U-V1605B (non-WiFi)
– HBJC501I1UI-V1605B (WiFi)
CPU/Chipset – AMD (RYZEN) Core V1000 Series Processor (V1605B, TDP 15W)
BIOS – AMI Flash ROM
Memory – 2* DDR4 2400MHz SO-DIMM up to 32GB
Network – 2* Realtek RTL8111H GbE
Graphics – AMD Vega Core Architecture, shared memory
– 4* DP1.4 (Max Resolution: 4096×2160@60Hz or 3840×2160@120Hz)
Storage – 1* 2.5” SATA Device
– 1* M.2 M-key (2242/2280, PCIe x2 interface)
Expansion – 1* M.2 E-key (2230) support WiFi/BT module
– 1* M.2 B-key (3042/3052) support 4G/5G module
Rear Panel I/O – 2* RJ45
– 4* DP
– 1* DC-in (Lockable)
– 2* USB3.2 (Gen.1)
– 2* USB2.0
– 2* COM (RS232/422/485)
– 1* Line-in, 1* Line-out, 1* MIC
Front Panel I/O – 1* Power button + Power LED
– 1* HDD LED
– 2* USB2.0
– 4* COM (RS232, optional)
Internal Connector – SIM Card Holder (NANO type)
Power Source – Adapter : AC 90~240V input / DC19V_90W output
– MB : DC12~28V input
Compliance – CE, FCC, RoHS, ErP Ready
Dimensions – System: 264 (W) x 199.4 (D) x 58 (H) mm
Temperature – Operating Temperature: -20 ~ 60° C (Under the condition of using M.2 interface SSD)
– Operating Temperature: 0 ~ 60° C (Under the condition of using 2.5” SATA HDD)
(The test environment is closed and windless)
– Storage Temperature: -20 ~ 60° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 11, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
