Jetway B382FRPU1 (Embedded Box PC, Intel i5-1335U Processor, 12-36V Input) [FANLESS]

Jetway B382FRPU1 (Embedded Box PC, Intel i5-1335U Processor, 12-36V Input) <b>[FANLESS]</b>

Intel Core i5-1335U !
Fanless !

Onboard with Intel® 13th Gen Core™ i5-1335U/1335UE (Formerly Raptor Lake-P, TDP 15W)
High-Speed Networking: 2 x 2.5GbE for fast and reliable connectivity
Storage & Expansion: 1 x SATA III, 1 x M.2 E-Key, 1 x B+M Key paired with 1 x Nano SIM Slot
Flexible Storage: 1 x M.2 M-key 2242/2280 (SATA III), 1 x M.2 M-key 2280
Comprehensive I/O: 4 x RS485/422/232, 3 x USB 3.2 Gen 2, 4 x USB 2.0, 2 x RJ45
Versatile Mounting: Supports desktop, wall mount, and DIN rail installation

918.00 EUR
incl. 19% VAT, plus shipping
Available in 4 weeks.

RAM :

SSD (M.2 NVME):

OS:

Build/Install:

SYSTEM
MB FORM FACTOR	3.5"
CPU	Onboard Intel® 13th Gen Core™ i5-1335U (Formerly Raptor Lake-P, TDP 15W)
CHIPSET	Intel® SoC
MEMORY	2 x DDR5 4800MHz, Dual Channel SO-DIMM, up to 64GB
BIOS	UEFI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
SECURITY	TPM2.0
RTC BATTERY	Lithium Battery
OS SUPPORT	Windows® 11 (64bit) Windows® 10 (64bit) Linux
POWER
POWER REQUIREMENT	DC-in 12~36V 90W Adapter: AC90~240V, DC19V/4.7A
POWER ON MODE	AT / ATX (Default) Mode
DISPLAY
GPU	Intel® Iris® Xe Graphics
Type C DP	1 x Type C DP1.4 (Max Resolution: 4096 x 2160@60Hz)
DP	2 x DP1.4 (Max Resolution: 4096 x 2160@60Hz)
HDMI	2 x HDMI 2.0b (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAY	Support 4 Displays
AUDIO
CODEC	Realtek Audio Codec
AMPLIFIER	3W
LAN
ETHERNET	1 x RJ45 for Intel® I226-V 2.5GbE 1 x RJ45 for Intel® I226-LM 2.5GbE
SYSTEM I/O

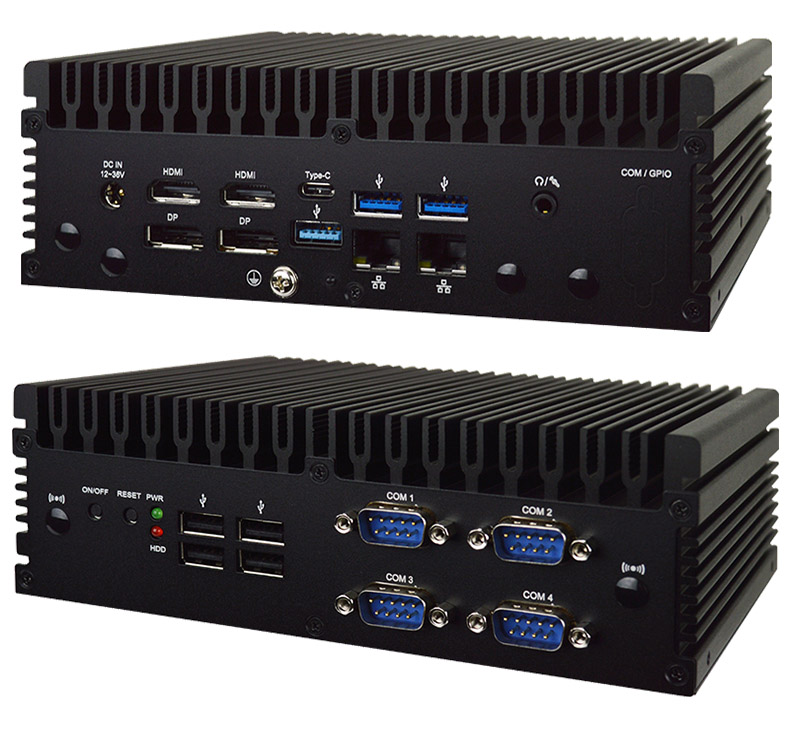

REAR PANEL I/O	4 x Antenna Holes 1 x DC-in (Lockable) 2 x HDMI 2.0b 2 x DP 1.4 3 x USB 3.2 Gen 2 1 x USB 3.2 Gen 1 Type C 2 x RJ45 1 x Audio ( Line out, MIC) 1 x GND Hold
FRONT PANEL I/O	1 x Power Button 1 x Reset Button 1 x Power LED 1 x HDD LED 4 x USB 2.0 4 x RS-232/422/485
STORAGE
SATA	1 x 2.5” SATA III 6Gb/s internal drive bay (Max. Height 9.5 mm)
EXPANSION
M.2	1 x B+M-Key 2242 (SATA/PCIe 3×1) for SSD 1 x M-Key 2242/2280 (PCIe 4.0 x4) support NVMe 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVi
SIM	1 x Nano SIM Card Slot
MECHANICAL
MOUNTING	Desktop, Wallmount, Din Rail
DIMENSIONS (W x D x H)	185.0 (W) x 142.0 (D) x 61.0 (H) mm (7.28" x 5.6" x 2.4")
NET WEIGHT	3.5 kg
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE	-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE	-40°C ~ 85°C (-40°F ~ 185°F)
OPERATING HUMIDITY	10 ~ 90% Relative Humidity, Non-condensing
CERTIFICATION	CE/FCC Class A LVD
ESG DECLARATION	China RoHS CMRT Report TSCA Declaration WEEE REACH

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (Rackmount)	Download (PDF)
Jetway Catalog (Barebones)	Download (PDF)
