EverFocus EAR-100T (NVIDIA Jetson Thor T5000, 12x GMSL2, 2x 5GbE LAN, 2x CAN-FD, 19-36VDC)

PRODUCT IS CURRENTLY NOT AVAILABLE !

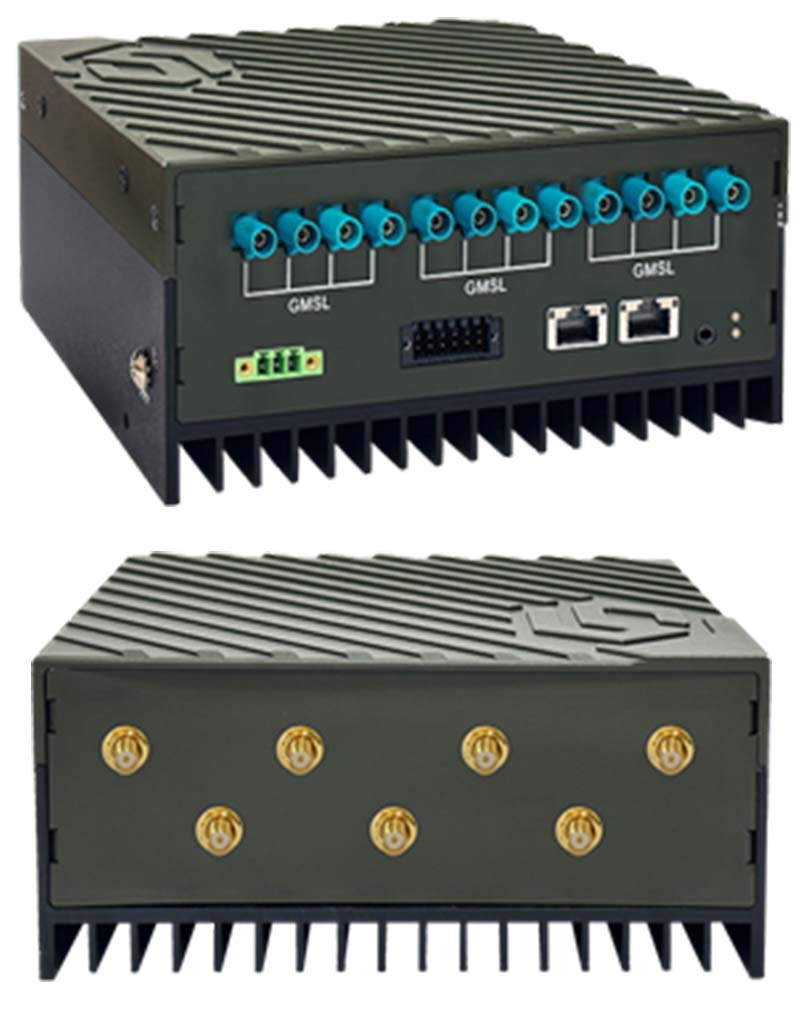

EverFocus EAR-100T (NVIDIA Jetson Thor T5000, 12x GMSL2, 2x 5GbE LAN, 2x CAN-FD, 19-36VDC)
3D 360° View
  • NVIDIA Jetson Thor ! !
  • 12 x FAKRA !
  • Robotic Controller !

  • Accelerated by NVIDIA® Jetson T5000
  • Up to 2070 FP4 TFLOPS of AI compute and 128 GB of memory
  • 12 x GMSL2 camera FAKRA Z code interface with frame sync
  • 2 x 5 GbE LAN, 2 x CAN-FD
  • 4 x USB 3.2, 1 x Audio (optional)
  • Power input 19 ~ 36 VDC

Share

0.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Add to cart
Model name EAR-100T (Preliminary)
Processor
NVIDIA Jetson T5000™
Blackwell GPU + Arm Neoverse V3AE CPU
Main Memory 128 GB (8 x 16 GB) memory with 256-bit LPDDR5X DRAM
Storage 1 x M.2 M-Key 2280, support NVMe
SIM Slot 1 x Nano SIM Card Socket
Audio Input 1 x Mic in (Optional)
CAN Bus 2 x CAN-FD
USB 4 x USB 3.2, Type-A (Optional)
Audio Output 1 x speaker
Power 19 ~ 36 VDC
3-pin Terminal Block
Supported Software NVIDIA JetPack™ 7.0
Ethernet 2 x 5 GbE LAN, RJ45
Expansion Slot 1 x M.2 E-key (2230) for Wi-Fi/BT | 1 x M.2 M-key (2280) for NVMe SSD | 1 x M.2 B-key (3052) for 4G/5G
Dimensions (W x D x H) -20 ~ 60 °C (-4 ~ 140 °F)
Envirement Operating Temperature: -20 ~ 60 °C (-4 ~ 140 °F)
10% ~ 95% relative humidity, non-condensing
Storage Temperature: -40 ~ 85 °C (-40 ~ 176 °F)
Debug Port 1x Micro USB
GSML Camera 12 x FAKRA Z code with frame syn
Wireless 1 x M.2 E-Key 2230, Wi-Fi/BT | 1 x M.2 B-Key 3052, 4G/5G
Data sheet Download (PDF)
Data sheet Print view
