AVerMedia D115WONB-8G BoxPC (NVIDIA Jetson Orin Nano 8GB, 256GB SSD)

PRODUCT IS CURRENTLY NOT AVAILABLE !

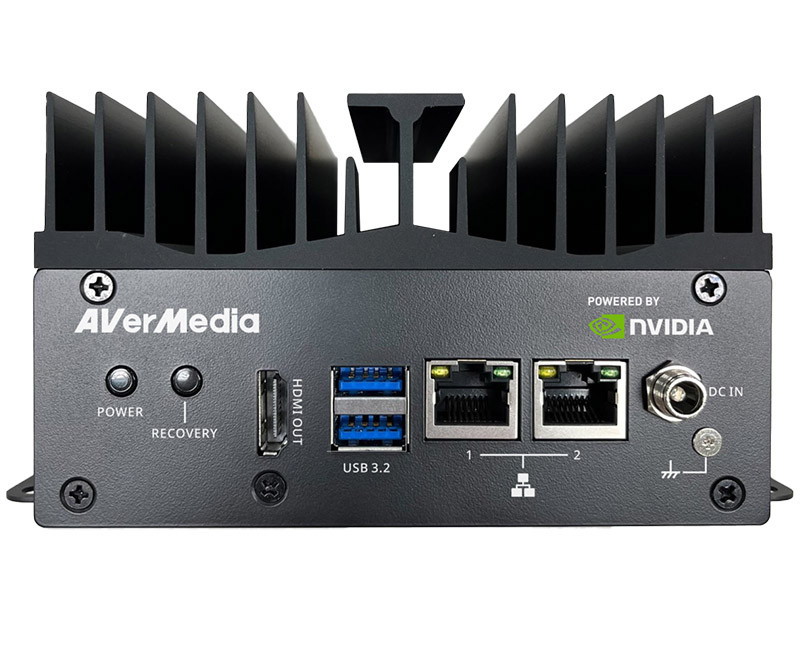

AVerMedia D115WONB-8G BoxPC (NVIDIA Jetson Orin Nano 8GB, 256GB SSD)
  • NVIDIA® Jetson Orin Nano !
  • FANLESS !
  • 8GB !
  • 2x HDMI / 2x LAN !

  • Applies to NVIDIA® Jetson Orin™ Nano module
  • 2 x M.2. for WIFI and SSD
  • 2 x GbE RJ-45 (Optional: Ethernet 1 for PoE)
  • 3 x USB 3.2 & 1 x HDMI output
  • 20-pins expansion header
  • Operating temperature -25°C~60°C
  • Dimension: 126mm x 96mm x 73.9mm (4.96” x 3.78” x 2.91”)
[more]
Share

0.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart

  • Applies to NVIDIA® Jetson Orin™ Nano module
  • 2 x M.2. for WIFI and SSD
  • 2 x GbE RJ-45 (Optional: Ethernet 1 for PoE)
  • 3 x USB 3.2 & 1 x HDMI output
  • 20-pins expansion header
  • Operating temperature -25°C~60°C
  • Dimension: 126mm x 96mm x 73.9mm (4.96” x 3.78” x 2.91”)

AVerMedia's AI Box PC D115WONB equips powerful NVIDIA® Jetson Orin™ Nano module. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

D115WONB Box PC is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA's JetPackTM SDK.

Stay Ahead with AVerCooler – Achieving 5°C Lower Operation under Others Regular Workload for Enhanced NVIDIA Jetson Efficiency, Extended Lifespan, and Superior Performance.



/ D115WONB-8GNVIDIA GPU SoC Module Compatibility NVIDIA® Jetson Orin Nano moduleNetworking

2x GbE RJ-45
1xM.2. key E 2230 for wifi

Display Output 1 x HDMI output 3840 x 2160 at 60Hz for Orin NanoTemperature

Operating temperature -25°C~60°C
Storage temperature -40°C ~ 85°C
Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs(Internal)

2x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch Connector

USB

1x USB 2.0 type C for recovery
3x USB 3.2 Type-A  (1xUSB is internal)

Storage

1x M.2. key M 2280 for NVMe (256G SSD installed in box PC)

Expansion Header (Internal)

20 pins: 2x I2C, 1x UART, 4x GPIOs, 1xCAN (EU terminal block)

Power requirement

DC in JACK on board & ATX 4pin
12V/5A, 12V~24V is recommended..

Power CordUS/JP/EU/UK/TW/AU/CNFan Module

Fanless Solution

ButtonsPower and RecoveryRTC BatterySupport RTC battery and Battery Life Monitoring by MCUPCB/Electronics Mechanical Info

W: 126mm (W) x 96mm (L) x 74mm (H)
Weight: 1kg

Certifications

CE, FCC, KC

Package 1x D115WONB (256G SSD installed)
1x Adapter and Power cable

Type / Model Box PC
Data sheet Download (PDF)
Data sheet Print view
