JETWAY JNUC-ADN1-N15000-A1 (Intel N150, 2x 2.5GbE)

PRODUCT IS CURRENTLY NOT AVAILABLE !

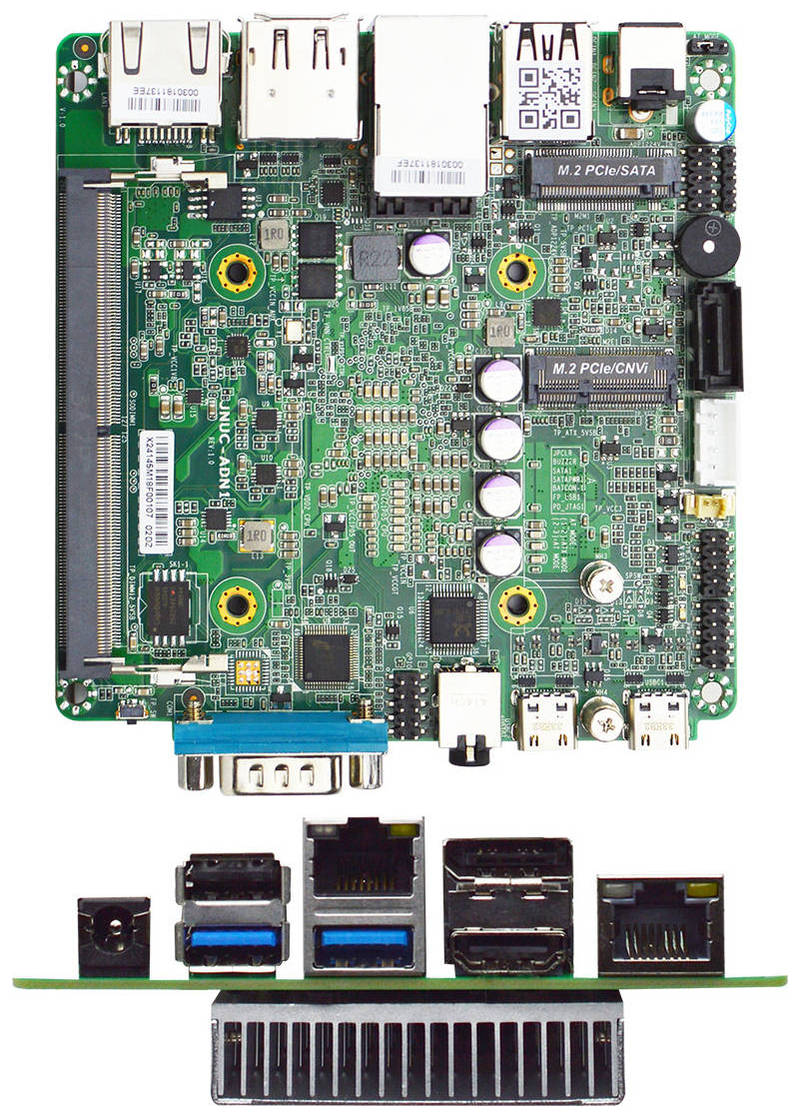

JETWAY JNUC-ADN1-N15000-A1 (<b>Intel N150</b>, 2x 2.5GbE)
  • Intel N150 !
  • 2x 2.5GbE !
  • DDR5-4800 !
  • NUC 101 x 101mm !


The JETWAY JNUC-ADN1-N15000-A1 is a NUC motherboard powered by the Intel® Processor N150 (formerly Twin Lake). It features one DDR5-4800 SO-DIMM slot supporting up to 32GB memory and two Intel® I226-V 2.5GbE ports. HDMI®, DisplayPort and two Type-C DP ports are available for display output, supporting up to three displays. The compact NUC board also provides SATA III, M.2 slots for NVMe and CNVio modules, a configurable serial port, and a wide operating temperature range from -20°C to 60°C.

  • Intel® Processor N150 (Formerly Twin Lake, TDP 6W)
  • 1* DDR5 4800MT/s Single Channel SO-DIMM up to 32GB
  • 2* Intel® I226-V 2.5GbE RJ45
  • 2* Type [more]
    Share

0.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:


The JETWAY JNUC-ADN1-N15000-A1 is a NUC motherboard powered by the Intel® Processor N150 (formerly Twin Lake). It features one DDR5-4800 SO-DIMM slot supporting up to 32GB memory and two Intel® I226-V 2.5GbE ports. HDMI®, DisplayPort and two Type-C DP ports are available for display output, supporting up to three displays. The compact NUC board also provides SATA III, M.2 slots for NVMe and CNVio modules, a configurable serial port, and a wide operating temperature range from -20°C to 60°C.

  • Intel® Processor N150 (Formerly Twin Lake, TDP 6W)
  • 1* DDR5 4800MT/s Single Channel SO-DIMM up to 32GB
  • 2* Intel® I226-V 2.5GbE RJ45
  • 2* Type-C DP1.4, 1* DP1.4 and 1* HDMI® 2.0
  • 2* USB 3.2 Gen 2 Type-C with DP Alt Mode, 2* USB 3.2 Gen 2x1 and 3* USB 2.0
  • 1* DB-9 for RS-232/422/485
  • 1* M.2 M-Key 2260/2280 for NVMe and 1* M.2 E-Key 2230 for CNVio
  • Intel® PTT with integrated fTPM


ModelJNUC-ADN1-N15000-A1
Intel® PTT (fTPM)
MB Form FactorNUC
101.0 (W) x 101 (D) mm (4.0" x 4.0")
Processor SystemOnboard Intel® Processor N150 (Formerly Twin Lake, TDP 6W)
Intel® SoC
Memory1 x DDR5 4800MT/s, Single Channel SO-DIMM, up to 32GB
BIOSUEFI
SecurityIntel® PTT (Integrated fTPM)
TPM2.0 (dTPM, Optional)
GraphicsIntel® UHD Graphics
2 x Type-C DP1.4 (Max Resolution: 4096 x 2160@60Hz)
1 x DP1.4 (Max Resolution: 4096 x 2160@60Hz)
1 x HDMI® 2.0 (Max Resolution: 4096 x 2160@60Hz)
Support 3 Displays
Ethernet2 x RJ45 for Intel® I226-V 2.5GbE
AudioRealtek Audio Codec
1 x Combo Audio Jack for Line-Out / Mic-In
USB Port2 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
2 x USB 3.2 Gen 2 Type-C (10Gbps) Support DP ALT Mode
1 x USB 2.0
Internal Header for 2 x USB 2.0
Serial Port1 x DB-9 for RS-232/422/485
Internal I/O8-Bit GPIO
SMBUS
1 x CPU Smart Fan
Power LED, Power On/Off
1 x Chassis Intrusion
1 x AT Mode Selection
Storage1 x SATA III
1 x SATA Power Connector
eMMC 64GB (optional)
Expansion1 x M-Key 2260/2280 (PCIe 3.0 x2/SATA III) Support NVMe
1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVio
PowerDC-in 12~19V
AT / ATX Power On Mode
DC Jack
EnvironmentOperating Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
Storage Temperature: -20°C ~ 85°C (-4°F ~ 185°F)
Operating Humidity: 10 ~ 90% Relative Humidity, Non-condensing
Shock: 15G, 11ms duration
Vibration: 1 Grms/ 5~ 500Hz/ Operation
OS Support / CertificationWindows® 11 (64bit), Linux
CE/FCC Class A
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
