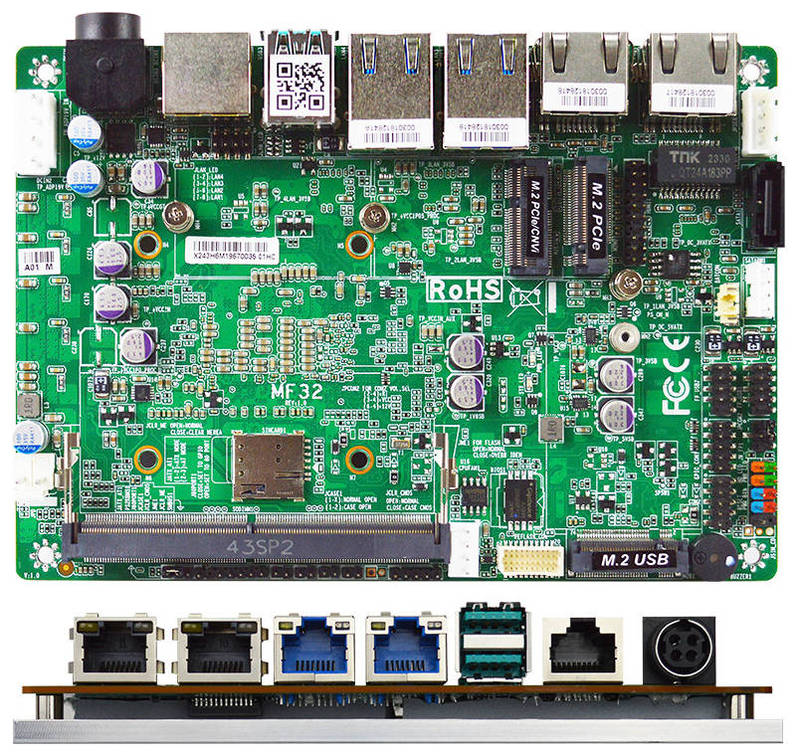

Jetway MF32-300U0 3.5" SBC (Intel Celeron U300, 4x 2.5GbE LAN) [Dual PoE]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway MF32-300U0 3.5" SBC (Intel Celeron U300, 4x 2.5GbE LAN) <b>[Dual PoE]</b>
  • Intel Celeron U300 !
  • 4x 2.5GbE LAN !
  • Dual 802.3at PoE !
  • DDR5-4800 / PCIe 4.0 x4 !

  • Onboard Intel® Celeron® U300 Processor (Formerly Raptor Lake-P, TDP 15W)
  • High-Performance Memory: 1 x DDR5 4800MHz Single Channel SO-DIMM, up to 32GB
  • 4 x 2.5GbE LAN: 3 x Intel® I226-V and 1 x Intel® I226-LM
  • Supports Dual 802.3at PoE Output
  • Storage & Expansion: 1 x SATA III, 1 x M.2 M-Key with NVMe support, 1 x M.2 E-Key, and 1 x M.2 B-Key with Nano SIM card slot
  • Comprehensive I/O: 2 x USB 3.2 Gen 2, 4 x USB 2.0, and 2 x COM
  • Integrated Intel® PTT (fTPM)
  • Wide operating temperature range from -20°C to 60°C

Share

0.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
MB FORM FACTOR3.5"
CPUOnboard Intel® Celeron® U300 (Formerly Raptor Lake-P, TDP 15W)
CHIPSETIntel® SoC
MEMORY1 x DDR5 4800MHz, Single Channel SO-DIMM, up to 32GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYIntel® PTT (Integrated fTPM)
RTC BATTERYLithium Battery
DIMENSION (W X D)148.0 (W) x 102.0 (D) mm (5.8″ x 4.0″)
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTDC-in 19V
POWER ON MODEAT / ATX (Default) Mode
CONNECTOR4-pin Power Din
Internal 4-pin Header
DISPLAY
GPUIntel® Iris® Xe Graphics
HDMI1 x Internal Header for HDMI 1.2 (Max Resolution: 1920 x 1080@60Hz)
LAN
ETHERNET3 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I226-LM 2.5GbE
USB PORT
USB2 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
Internal Header for 4 x USB 2.0
SERIAL PORT
COMInternal Header for 1 x RS-232/422/485
1 x RJ50 for RS-232
INTERNAL I/O
GPIO8-Bit
SMBUSYes
FAN1 x 4-pin Connector for CPU Fan (PWM Mode)
FRONT PANELHDD Active LED
Power LED
Power On/Off
Reset
ADDITIONALOnboard 1x2-pin header and 1x4-pin header for PoE Module
1 x AT/ATX Mode Selection
1 x Chassis Intrusion
1 x PS/2
STORAGE
SATA1 x SATA III
1 x SATA Power Connector
EXPANSION
M.21 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) support CNVio
1 x B-Key 3042/3052 (USB 3.2/PCIe 3.0 x1)
1 x M-Key 2242/2280 (PCIe 4.0 x4) support NVMe
SIM1 x Nano SIM Card Slot
ENVIRONMENT & CERTIFICATION
SHOCK15G, 11ms duration
VIBRATION1 Grms/ 5~ 500Hz/ Operation
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-40°C ~ 85°C (-40°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% Relative Humidity, Non-condensing
STORAGE HUMIDITY10 ~ 90% @40°C, Non-condensing
CERTIFICATIONCE/FCC Class A
