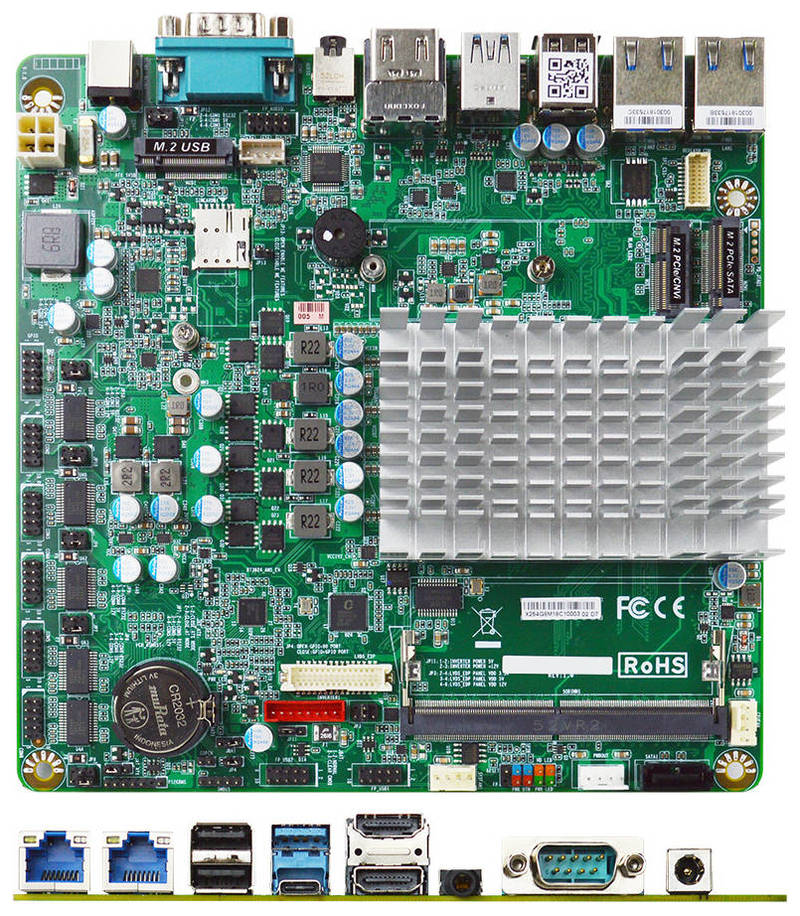

JETWAY MTX-TWL1-N1500010 MiniITX (Intel Atom N150 SoC, 2x HDMI, 2x 2.5GbE LAN) [12-28V Input]

PRODUCT IS CURRENTLY NOT AVAILABLE !
JETWAY MTX-TWL1-N1500010 MiniITX (Intel Atom N150 SoC, 2x HDMI, 2x 2.5GbE LAN) <b>[12-28V Input]</b>
  • Intel Atom N150, 6W !
  • 2x 2.5GbE LAN !
  • 6x COM, 6x USB !
  • MTX-TWL1-N1500010 !

  • Powered by onboard Intel® Atom® N150 Processor (Formerly Twin Lake, TDP 6W)
  • Memory: 1 x DDR5 4800MT/s Single Channel SO-DIMM, up to 32GB
  • Support up to three displays: 1 x Type-C DP, 2 x HDMI® 2.0b and 1 x LVDS/eDP
  • Dual 2.5GbE LAN ports for fast and reliable networking
  • Storage expansion with 1 x SATA III and 1 x M.2 M-Key for NVMe
  • Additional expansion options: 1 x M.2 E-Key and 1 x M.2 B-Key for 4G/5G modules
  • Comprehensive I/O: 1 x USB 3.2 Gen 2x1, 1 x USB 3.2 Gen 2x1 Type-C, 6 x USB 2.0 and 6 x COM ports
  • Wide DC input range of 12-28V
  • Intel® PTT (fTPM)

Share

0.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
SYSTEM
MB FORM FACTORMini-ITX
CPUOnboard Intel® Atom® N150 Processor (Formerly Twin Lake, TDP 6W)
CHIPSETIntel® SoC
MEMORY1 x DDR5 4800MT/s, Single Channel SO-DIMM, up to 32GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYIntel® PTT (fTPM)
RTC BATTERYLithium Battery
DIMENSION (W X D)170.0 (W) x 170.0 (D) mm (6.7″ x 6.7″)
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTDC-in 12~28V
POWER ON MODEAT / ATX
CONNECTORDC Jack
4-pin Header
DISPLAY
GPUIntel® UHD Graphics
LVDS1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1080 @60Hz / Co-Lay eDP)
Type-C DP1 x Type-C DP1.4 (Max Resolution: 4096 x 2160@60Hz)
HDMI®2 x HDMI® 2.0b (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAYSupport 3 Displays
AUDIO
CODECRealtek Audio Codec
COMBO1 x Combo Audio Jack for Line-Out / Mic-In
AMPLIFIER3W
LAN
ETHERNET2 x RJ45 for Intel® I226-V 2.5GbE
USB PORT
USB1 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
1 x USB 3.2 Gen 2x1 Type-C (10Gbps) Support DP ALT Mode
2 x USB 2.0
Internal Header for 4 x USB 2.0
SERIAL PORT
COM1 x DB-9 for RS-232/422/485 with 5V/12V header
Internal Header for 5 x RS-232 with 5V/12V header
INTERNAL I/O
GPIO8-Bit
SMBUSYes
FAN1 x CPU Fan Header
1 x System Fan Header
FRONT PANELHDD Active LED, Power On/Off, Power LED, Reset
ADDITIONAL1 x PS/2
STORAGE
SATA1 x SATA III
1 x SATA Power Connector
EXPANSION
M.21 x M-Key 2242/2280 (SATA/PCIe 3.0 x2) Support NVMe
1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVi
1 x B-Key 3042/3052 (USB 3.2/USB 2.0) for 4G/5G Module
SIM1 x Nano SIM Card Slot
ENVIRONMENT & CERTIFICATION
SHOCK15G, 11ms duration
VIBRATION1 Grms/ 5~ 500Hz/ Operation
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% Relative Humidity, Non-condensing
CERTIFICATIONCE/FCC Class A
Packing ListMTX-TWL1 MB
I/O Shield
Heatsink
COM Port Cable x 2
SATA Cable
SATA Power Y Cable
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
