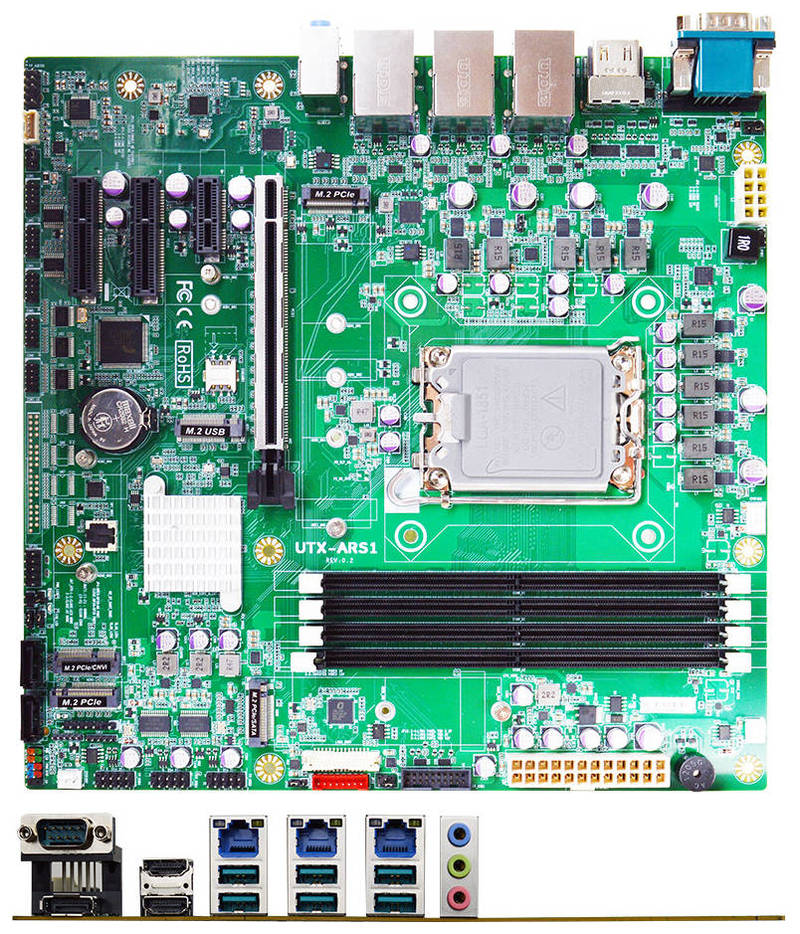

JETWAY UTX-ARS1-W880 Micro-ATX (Intel W880, LGA1851) [3x 2.5GbE, PCIe Gen5 x16]

PRODUCT IS CURRENTLY NOT AVAILABLE !
JETWAY UTX-ARS1-W880 Micro-ATX (Intel W880, LGA1851) [<b>3x 2.5GbE</b>, PCIe Gen5 x16]
  • Core Ultra Series 2 !
  • Intel W880 !
  • 3x 2.5GbE !
  • PCIe Gen5 x16 !

  • Intel® LGA1851 Core Ultra Series 2 Socket processor (formerly Arrow Lake-S, max. 125W TDP)
  • Intel® W880 chipset
  • 4 x DDR5 6400 MT/s CU-DIMM, dual channel, up to 256GB, ECC supported
  • Supports up to four displays with 2 x HDMI® 2.1 TMDS, 1 x DP1.4a and LVDS with co-layout eDP
  • 3 x M.2 M-Key, 2 x SATA III with Intel® VMD RAID 0, 1 and SATA RAID 0, 1, 5
  • 1 x PCIe Gen 5 x16, 2 x PCIe Gen 4 x4, 1 x PCIe Gen 4 x1, 1 x M.2 B-Key and 1 x M.2 E-Key
  • 3 x 2.5GbE
  • 6 x USB 3.2 Gen 2x1, internal headers for 2 x USB 3.2 Gen 1 and 6 x USB 2.0
  • Supports up to 10 COM ports
  • Intel® PTT (integrated fTPM), TPM 2.0 (dTPM, optional)
    • [more]
    Share

0.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:

  • Intel® LGA1851 Core Ultra Series 2 Socket processor (formerly Arrow Lake-S, max. 125W TDP)
  • Intel® W880 chipset
  • 4 x DDR5 6400 MT/s CU-DIMM, dual channel, up to 256GB, ECC supported
  • Supports up to four displays with 2 x HDMI® 2.1 TMDS, 1 x DP1.4a and LVDS with co-layout eDP
  • 3 x M.2 M-Key, 2 x SATA III with Intel® VMD RAID 0, 1 and SATA RAID 0, 1, 5
  • 1 x PCIe Gen 5 x16, 2 x PCIe Gen 4 x4, 1 x PCIe Gen 4 x1, 1 x M.2 B-Key and 1 x M.2 E-Key
  • 3 x 2.5GbE
  • 6 x USB 3.2 Gen 2x1, internal headers for 2 x USB 3.2 Gen 1 and 6 x USB 2.0
  • Supports up to 10 COM ports
  • Intel® PTT (integrated fTPM), TPM 2.0 (dTPM, optional)


FORM FACTORMicro-ATX: 244.0 x 244.0 mm (9.6" x 9.6")
PROCESSORIntel® LGA1851 Socket, Arrow Lake-S Processor / Max. TDP 125W
CHIPSETIntel® W880
SYSTEM MEMORY4 x DDR5 6400MT/s, Dual Channel CU-DIMM / Max. 256GB / ECC Supported
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYIntel® PTT (Integrated fTPM)
TPM2.0 (dTPM, Optional)
GPUIntel® Graphics
LVDS1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1200 @60Hz, co-layout eDP)
DP1 x DP1.4a (Max Resolution: 4096 x 2160@60Hz)
HDMI®2 x HDMI® 2.1 TMDS (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAYSupport 4 Displays
AUDIORealtek Audio Codec / 1 x Audio Jack for Line-in / 1 x Audio Jack for Line-out / 1 x Audio Jack for MIC-in / 3W Amplifier
ETHERNET1 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I226-LM 2.5GbE
1 x RJ45 for Realtek® RTL8156 2.5GbE
USB6 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
Internal Header for 2 x USB 3.2 Gen 1
Internal Header for 6 x USB 2.0
SERIAL PORT1 x DB-9 for RS-232/422/485
Internal Header for 5 x DB-9 for RS-232
Internal Header for 4 x RS-232 (Optional)
GPIO8-Bit
SMBUSYes
I2CYes
FAN1 x CPU Fan Header
2 x System Fan Header
FRONT PANELHDD Active LED, Power LED, Power On/Off, Reset
ADDITIONAL1 x Chassis intrusion
1 x AT/ATX Mode Selection
STORAGE2 x SATA III
RAIDIntel® VMD RAID 0, 1 & SATA RAID 0, 1, 5
EXPANSION SLOT1 x PCIe Gen 5 x16
2 x PCIe Gen 4 x4
1 x PCIe Gen 4 x1
1 x M-Key 2242/2260/2280/22110 (SATA/PCIe 4.0 x4) Support NVMe
1 x M-Key 2242/2280 (PCIe 4.0 x4 / SATA III) Support NVMe
1 x M-Key 2280 (PCIe Gen 4x4) support NVMe
1 x B-Key 3042/3052 (USB 3.2/USB 2.0) for 4G/5G Module
1 x E-Key 2230 (USB 2.0/PCIe Gen 4 x1)
SIM1 x Nano SIM Card Slot
POWER CONNECTORInternal 24+8-pin ATX Header
POWER INPUTATX Power Supply
POWER ON MODEAT / ATX (Default) Mode
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% relative humidity, non-condensing
SHOCK15G, 11ms duration
VIBRATION1 Grms / 5~500Hz / Operation
CERTIFICATIONCE/FCC Class A
LVD
EU RoHS, China RoHS, WEEE, REACH, TSCA Declaration, PRO65 Declaration, CMRT Report
OS SUPPORTWindows® 11 (64bit), Linux
PACKAGE1 x UTX-ARS1 Mother Board
3 x COM Cable
2 x SATA Cable, 50cm
1 x I/O Shield
2 x Jumper
