TDK-Lambda HWS300-24/PV AC/DC Power Supply (24 VDC, 336 W) [REMNANT]

PRODUCT IS CURRENTLY NOT AVAILABLE !

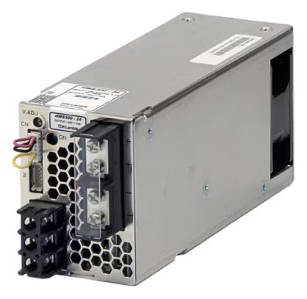

TDK-Lambda HWS300-24/PV AC/DC Power Supply (24 VDC, 336 W) [REMNANT]
  • 336 W Output Power !
  • 24 VDC Output !
  • 1-6 V Program Voltage !
  • 85-265 VAC Input !

  • Single-output AC/DC power supply from the HWS series with 24Vdc nominal output and up to 336W output power
  • PV option with 1 to 6V output program voltage for HWS300 models
  • Wide-range input from 85 to 265Vac plus 120 to 330Vdc input
  • Complies with SEMI F47
  • Class B conducted and radiated EMI emissions
  • Remote sense and remote on/off isolated from output
  • Parallel operation of up to five units via a single-wire connection
  • Green LED indication for DC output OK
  • Enclosed aluminum case with screw terminals

Share

0.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart
ModelHWS300-24/PV
SeriesHWS
ConfigurationSingle Output Industrial Power Supply
Output Voltage24Vdc
Output Voltage Adjustment19.2 to 28.8Vdc
Maximum Output Current14A
Maximum Peak Current16.5A
Maximum Output Power336W
Output Programming1 to 6V output program voltage
Input Voltage Range (AC)85 to 265Vac
Input Voltage Range (DC)120 to 330Vdc
Input Frequency47 to 63Hz
Efficiency85% typ.
CoolingForced air
Operating Temperature-10 to +70C
Remote SenseYes
Remote On/OffYes, isolated from output
Parallel OperationUp to 5 units
Safety StandardsCSA60950-1
EN60950-1
UL60950-1
CSA62368-1
EN62368-1
UL62368-1
CSA C22.2 No.14-M95
UL508
EN50178
EMIEN55011 / EN55032-B, FCC-B, VCCI-B
Dimensions (W x H x D)61 x 82 x 165 mm
Weight1000g typ.
Data sheet Download (PDF)
Data sheet Print view
