Jetway J7F5M1G5-VHE (HDTV, HDMI)

PRODUCT IS CURRENTLY NOT AVAILABLE !

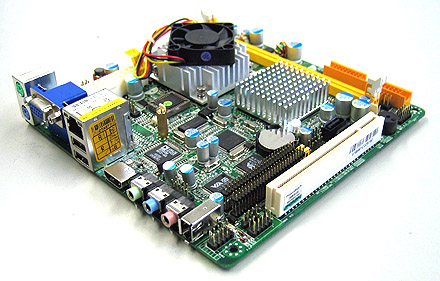

Jetway J7F5M1G5-VHE (HDTV, HDMI)
  • HDMI !
  • HDTV !

-VIA CX700M Single chipset Technology
-Support Front Side Bus 533MHz
-Support 2 Serial ATA 2 Devices with RAID 0, 1
-Support PCI 120-Pin Adapter Conn. With Expansion Daughter-boards
-Gigabit Ethernet LAN Supported
-6 Channel HD Audio CODEC
-VIA VT6307 IEEE1394a Controller
-VIA VT1622A TV Encoder
-17 x 17CM Mini-ITX Form Factor




Share

164.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

4 von 5 Sternen
2 ratings

Add to cart
Compare
CPU VIA C7 1.5Ghz
Graphics VIA Unichrome Pro II
Formfactor ITX (17x17cm)
RAM 1x DDR-II 400/533
Audio VIA VT1708A 6-Kanal HD Audio CODEC
Base VIA ITX
USB 6x USB 2.0
Firewire 1x
IDE/SATA 2x IDE, 2x SATA
LAN 1x 10/100
Parallel --
Serial 2x
yes TV-Out
yes PCI
no Mini-PCI
yes IDE
no DVI
no 800x480 Resolution
no Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
no CPU changeable
no Compact Flash
Form Factor Mini-ITX Express Motherboard
CPU VIA C7 1.5GHZ CPU (12W)
Memory 1 * 240-pin DIMM Sockets for DDR2 533 up to 1 GB
Chipset VIA CX700M Single Chipset
Power Management ACPI S3 Compliant ,supports power saving mode
PCI enhanced IDE 2* Ultra DMA 133 / 100 / 66 IDE Devices Support
Serial ATA Interface 2 Serial ATA2 HDDs with RAID 0, 1 Function Support
VGA Interface VIA Unichrome Pro II
Video Memory Share Memory up to 128MB
Audio Interface VIA VT1708A 6-Channel HD Audio CODEC
LAN Interface VIA VT6122 10 / 100 / 1000 PCI LAN
Extended Interface 1 * 32-bit PCI Slot
1 * PCI 120-Pin Adapter Connector
   with Expansion Daughter Boards
Internal I/O Port 2 * High Speed USB Connectors for 4 USB 2.0 Ports
1 * CPU Smart Fan Connector, 2 * Chassis Fan Connectors
2 * 9-Pin COM Port Connector
1 * CD / AUX Audio in & SPEAK Out
1 * HDTV Out Connector
1 * IrDA (SIR)
1 * 6-pin Video Input Pin-header
1 * PCI 120-Pin Adapter Conn.
External I/O Port 2 * High Speed USB Connectors @ 480 M-bit / s
1 * D-Sub 15-pin VGA Connector
1 * HDMI Port
1 * PS / 2 Mouse & 1 * PS/2 Keyboard
1 * RJ45 Connector
1 * Audio I / O
1 * IEEE 1394a Connector
BIOS Award 4 MB Flash ROM
Power Requirement Standard 24-Pin ATX Power supply
Dimension 170mm x 170mm
Data sheet Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 2 ratings
5 von 5 Sternen from b.pereira am 11.05.2008 | See all my comments

Nice price good quality but no S3 state

3 von 5 Sternen from kurtum am 10.05.2008 | See all my comments

excelente motherboard .com um processador de 1. G memoria ddr2 . com audi digital e saida hdmi tornas-se numa boa solucao para sistemas media center .esta motherboard e uma alternativa as boards via
