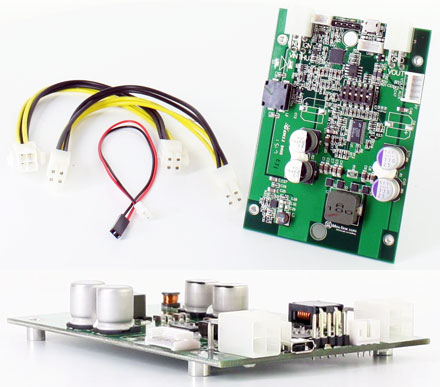

Designed for Intel NUC or single rail motherboard designs, the DCDC-NUC provide user specified(+12V or +19V) regulated power output from a wide input voltage(6V-48V). Default output setting is set to +12V. It has a range of intelligent functions not found in any tradition PSU converters. The unit is able to send ON/OFF "pulse signals" to motherboards based on filtered input voltage levels or Ignition sensing, making it an ideal device for automotive or battery powered installations.

Features:
- 6-48V intelligent automotive PSU
- High efficiency synchronous buck-boost
- 12V or 19V selectable output, 6A peak
- 2.5" hard drive mounting footprint
- Ignition switch, MCU control
- Anti Thump output in automotive mode
- Motherboard startup/shutdown control by ON/OFF pulse
- Motherboard shutdown control by USB
- Customizable startup/shutdown timers
- Low Power standby consumption (<1ma)
- HID-USB connection
- Input, Output Voltage and Current measurement
- Selectable OverVoltage, UnderVoltage and Under-Current
- Temperature measurement
- Motherboard detection using output Power measurements
- Programmable Spread Frequency Modulation for reduced EMI
- ROHS and REACH compliant



DCDC-NUC (Konverter von 6-48V auf 12/19V, max. 100 Watt, 2.5" Größe)

The CTFHD800 display models are the latest addition to the new HDMI-series from CarTFT.com. The native resolution is 1024x600. The new models are available as Standard-, Open-Frame- and sunlight-readable versions.



Standard
CTFHD800 - HDMI 8" TFT - Touchscreen USB - PAL/NTSC - Autodimmer - IR - Audio (1024x600, 500 nits) [LED]
CTFHD800-SL - HDMI 8" TFT - Touchscreen USB - PAL/NTSC - Autodimmer - IR - Audio (1024x600, 500 nits) [LED] -TRANSFLECTIVE PRO-
CTFHD800-WML - HDMI 8.0" (16:9) TFT - Touchscreen USB - Video - OPEN-FRAME (1024x600, 500 nits)
CTFHD800-WMSL - HDMI 8.0" (16:9) TFT - Touchscreen USB - Video - OPEN-FRAME (1024x600, 500 nits) -TRANSFLECTIVE PRO-
