Jetway HBFDF731(W)-3855-B (Intel Kabylake, 4x LAN, (WLAN))

• Intel® Skylake Celeron 3855U Processor (TDP 15W)
• Support 1 * SO-DIMM DDR4-2133 , up to 16GB memory
• 2 * USB2.0, 2 * USB3.0, 1 * HDMI, 4 * RJ45, 1 * Line out
• DC-12V 60W FSP Adapter

• Intel® Skylake/Kabylake U-series Processor (TDP 15W). Default is 3855U/3955U
• 1 * 260-pin Dual-channel DDR4 2133MHz SODIMM Up to 16 G
• 4* 10/100/1000 Base-TX Ethernet Ports
• Support Intel AES NI and TPM (option) to secure customers data
• 1 * RS232 Console, 2 * USB3.0 & 3 * USB2.0, 1 * HDMI
• 2* Mini PCIe Slots (1* full size & 1* half size), 1 * SIM card holder
• 12V DC-in power

TYAN S3227 (S32272NR-C338/C538/C858)

• Single Intel® Atom Denverton processor C3000 Series SoC
• 2x DIMM slots support up to 32GB/64GB UDIMM/RDIMM ECC DDR4 2400/2133, or 1x DIMM slot support up to 16GB/ 32GB UDIMM/ RDIMM ECC DDR4 1866
• 1x PCI-E Gen3 x8 slot (w/ x8 link or x2 link)*Low-proÿle supported only
• 1x SFI connector or w/M3227L8-X557-2C (-2T-C958 SKU only)
• 1x M.2 connector (2242/2260), 2x SATA HDDs by SATA-III connectors running at 6.0Gb/s (RAID Non-support)
• 2x GbE (via Realtek RTL8111H) or 2x 10GbE (from M3227L8-X557-2C TYAN Mezz Card) + 2x GbE (via Realtek RTL8111H) (-2T-C958 SKU)
• Mini-ITX 6.69" x 6.69" (170 x 170mm)

Jetway IMB-1900-2L (Intel Bay Trail)

• Intel Celeron J1900 SoC Processor
• Up to 2 Displays, VGA, HDMI Header, 24-bit LVDS
• 12 * Serial Ports (10*RS232, 2*RS232/422/485/TTL)
• 2 * Gigabit LAN Ports, 1 * M.2 SATA 2242/2260
• Built-in +12V DC Power Jack
• ECO-design for EuP/ErP

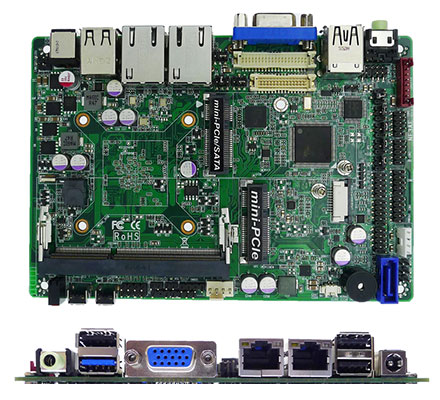

• Intel® Celeron Quad Core N2930 SoC Processor
• 1* VGA/4* COM/1* USB3.0, 7* USB2.0/2* GbE/2* Mini PCIe (full & half size)/1* DDR3L/1* SATAII/LVDS/eDP/1* PS/2/12V DC-in
• Support 1 * DDR3L 1333MHz Single Channel SO‐DIMM up to 8GB
• Support 1 * Serial ATAII (3Gb/s) Device
• 1 * 24‐bits Dual Channel LVDS header and 1 * 4‐lane eDP header
• Support VGA Output
• Supports 2 * Realtek RT8111G Gigabit LAN
• 3.5” SBC Form Factor (148mm * 102mm)

• Intel® Braswell N3160 CPU, 2* DDR3L up to 8GB, 1* LPT, 1* HDMI, 1* VGA, 2* COM
• Intel® Braswell N3160 Processor (TDP 6W)
• Support DDR3L-1600, 2 * SO-DIMM slot, up to 8GB memory
• 3 * USB2.0, 3 * USB3.0, 1 * HDMI, 1 * VGA, 2 * RJ45, 2 * COM, 1 * LPT, 1 * MIC, 1 * Line in, 1 * Line out

• Intel® Skylake /Kabylake CPU, DDR4 up to 32GB, support max 4K display resolution
• Intel® Skylake /Kabylake Processor (Max. TDP 65W)
• Support DDR4-2133, 2 * SO-DIMM slot, up to 32GB memory
• 2 * USB2.0 , 4 * USB3.0 , 2 * COM , 1 * HDMI , 2 * DP , 2 * RJ45 , 1 * MIC , 1 * Line out , 1 * Line in , 4 * COM (Option)
• M/B Form Factor : Mini ITX (170x170mm)
• DC-19V_120W Adapter

• Intel® Skylake U/Kabylake U CPU, DDR4 up to 32GB, support Max.4K display resolution
• Intel® Skylake-U/Kabylake-U Processor (TDP 15W)
• Support DDR4-2133, 2 * SO-DIMM slot, up to 32GB memory
• 2 * USB2.0, 4 * USB3.0, 1 * COM, 1 * HDMI, 1 * VGA, 2 * RJ45, 1 * RJ11
• 1 * PS2, 1 * LPT, 1 * MIC, 1 * Line out, 4 * COM (Option)
• M/B Form Factor : Mini ITX (170x170mm)
• DC-12V_60W Adapter
